Ravel 2 Zone Agent Release Panel
A microprocessor based 2 zone panel that detects a fire and releases a gaseous agent, with main and standby cylinder output and several release options.

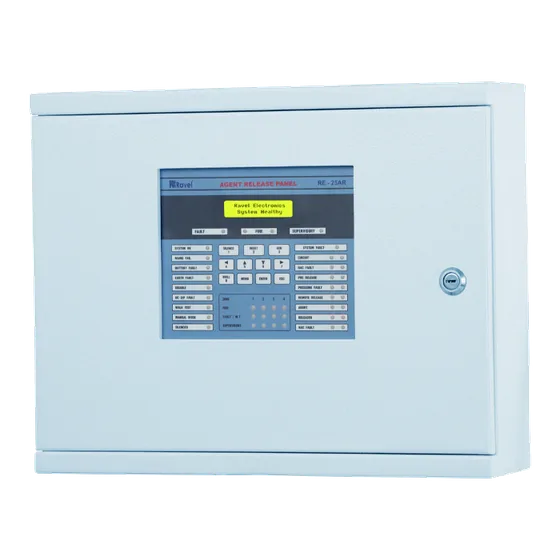

Dealer for RavelRavel 4 Zone Agent Release Panel with Two Release Circuits
A microprocessor based 4 zone agent release panel with two release circuits and solenoid coil monitoring, which Ravel states is UL listed.
- 4 detection zones and 2 agent release circuits, 16 x 2 LCD
- Solenoid on and off timer with solenoid coil monitoring
- 2 sounder circuits, 3 Form C relays and 4 programmable inputs
- Manual release with or without time delay, low pressure sensing
- Two 12 V, 12 Ah batteries, switch mode power supply
- Ravel states UL listing (9th edition)
Standards and approvals: UL
Specifications
Specifications
| Specification | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Primary Power (RE-SMPS-4A-R1) | 120 to 220VAC ± 10%, 50 Hz, 2.5Amps. | ||||||||||
| Initiating Device Circuits | All Zones are Class B Style B/C | operation (Programmable). | ||||||||||
| Normal Operating Voltage | 14 to 21 VDC. | 8 to 12 VDC. | |||||||||
| Alarm Current | 15 to 30mA. | ||||||||||
| Short Circuit Current | 45mA Maximum. | 5mA Maximum. | |||||||||
| Loop resistance | 100 ohms Maximum. | 100 ohms Maximum. | |||||||||
| End-Of-Line Resistor | 3K9, 1/2watt | 3K9, 1/2watt | 3K9, 1/2watt | 3K9, 1/2watt | |||||||
| Standby Current | 7mA (2mA for Detectors) | 2.5mA | |||||||||
| Standby Power | 24v D.C (2 Nos of 12v, 12Ah Sealed Lead acid battery). | ||||||||||
| Quiescent current | 120 mA. | ||||||||||
| Operating Condition | Operating Temperature 0 to 49° C / 32-120° F. | Relative Humidity 93 ± 2% RH (non-condensing) at | 32±2° C / 90 ± 3° F. | ||||||||||
| Notification Appliance Circuits | Class B, Style: Y wiring | ||||||||||
| No of circuits | 2 | 2 | |||||||||
| Operating Voltage | 24VDC | 24VDC | |||||||||
| Nominal Current | 0.6A per circuit | 0.6A per circuit | |||||||||
| Line Drop | 1.8V | 1.8V | |||||||||
| Charging Voltage | 28.0V, ± 0.2V | ||||||||||
| Charging current | 800mA (Max). | ||||||||||
| D.C. Output Power | Supervised 24VDC regulated, 300mA. | ||||||||||
| Releasing Agent Circuits | Class B, Style: Y wiring | ||||||||||
| Type | Form C | ||||||||||
| No of Relays | 3 | ||||||||||
| Relay Contact Rating | 2 Amps @ 30 VDC, | ||||||||||
| No. of Inputs | 4 | ||||||||||
| Maximum Manual Release Switch | 3 No’s. | ||||||||||
| Dimensions | (440W X 350H X 120D) | ||||||||||
| Color | Red / White | ||||||||||
| Construction | 18 Gauge (1.22mm) CRCA sheet with powder-coated Finish | ||||||||||
| IP Rating | IP50 | ||||||||||
| Cable Entry | 11xø19mm Knockout in top of the cabinet 10xø22.25mm Knockout in top of the cabinet |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
More Ravel Agent Release Panels
Ravel 4 Zone Agent Release Panel, UL 864
A 4 zone agent release panel with separate LED indication for each release circuit, which Ravel states complies with UL 864 (10th edition) and NFPA 72.
Ravel Gas Release Repeater Panel
A repeater panel that shows all the parameters of the RE-120GR or RE-25AR agent release panel at a second location.
Ravel RS485 Interface Module for RE-25AR
An RS485 driver module for the RE-25AR agent release panel, allowing up to 32 transceivers on the serial bus.
Ravel Modbus Converter for RE-25AR
A converter that changes the RE-25AR panel's Ravel protocol to Modbus, for linking to SCADA, PLC or BMS systems.
Ravel Emergency Release and Abort Call Points, Green and Yellow
Plastic call points for agent release systems: green for manual emergency release and yellow for abort.
