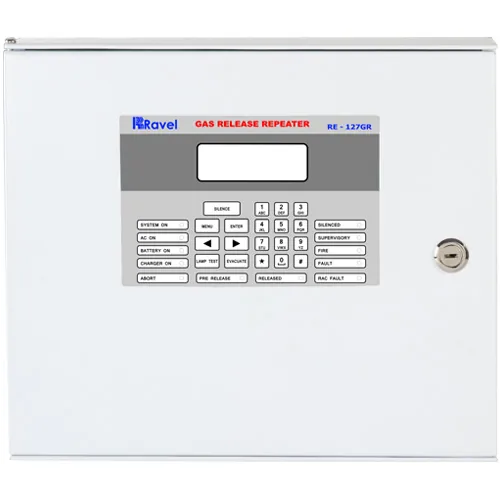

Dealer for RavelRavel Gas Release Repeater Panel
A repeater panel that shows all the parameters of the RE-120GR or RE-25AR agent release panel at a second location.
- Repeats all the parameters of the main panel
- Works with the RE-120GR and RE-25AR
- 20 x 4 LCD and alphanumeric keypad
- Drill test and evacuate facility, lamp test
- RS-485 communication, battery backup
Specifications
Specifications
| Specification | Details | Details | Details | Details | Details | Details |
|---|---|---|---|---|---|---|
| AC Power | 120-220 VAC,60/ 50 Hz | |||||
| Battery (Lead Acid only) | 24V D.C (2 Nos of 12v, 7Ah (Max.) Sealed Lead acid battery) | |||||
| Charging Current | Constant Voltage: 27.6v @ 0.5A (Max.). | |||||
| System Quiescent Current | 70mA | |||||
| Operating Temperature | 0 to 49° C / 32-120° F. | |||||
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ± 3° F. | |||||
| Operating Nominal Voltage | 24 VDC | |||||
| Sounder (NAC) output | 0.5A | |||||
| End-Of-Line Resistor | 4.7K, 1/4watt | |||||
| Potential Free Relay Contact | 1 No Fire Contact (2A@30VDC / 0.5A@125VAC) | |||||
| Type | Form C | |||||
| No of Relays | 1 | |||||
| Relay Contact Rating | 2 Amps @ 30 VDC, 0.5 Amps @ 125 VAC. | |||||
| Dimensions | (350W X 300H X 100D) | |||||
| Color | White | |||||
| Construction | 18 Gauge (1.22mm) CRCA sheet with powder-coated Finish | |||||
| IP Rating | IP50 | |||||
| Cable Entry | 11xø19mm Knockout in top of the cabinet |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
