Ravel 4 Zone Agent Release Panel with Two Release Circuits
A microprocessor based 4 zone agent release panel with two release circuits and solenoid coil monitoring, which Ravel states is UL listed.

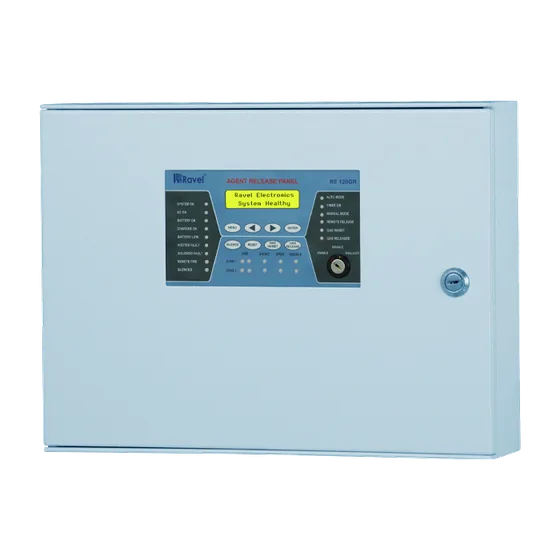

Dealer for RavelRavel 2 Zone Agent Release Panel
A microprocessor based 2 zone panel that detects a fire and releases a gaseous agent, with main and standby cylinder output and several release options.
- 2 detection zones and one agent release circuit, 16 x 2 LCD
- Programmable main and standby cylinder output
- Solenoid on and off timer, gas inhibit and instant release
- Manual release with or without time delay, low pressure sensing
- Logic to prevent accidental release, battery backup with built in charging
- Ravel states CE marking
Standards and approvals: CE
Specifications
Specifications
| Specification | Details | Details | Details | Details | Details | Details | Details | Details | Details |
|---|---|---|---|---|---|---|---|---|---|
| Power | 220-240 VAC, 50 Hz. | ||||||||
| Wire size | 1.5 Sq. mm with 600V insulation | ||||||||
| Operating Nominal Voltage | 24 VDC | 24 VDC | 24 VDC | |||||||
| Solenoid output | 0.75A | ||||||||
| End-Of-Line Resistor | 4.7K, 1/4watt (for Solenoid Output) | 4.7K, 1/4watt | 4.7K, 1/4watt | 4.7K, 1/4watt | ||||||
| Charging Voltage | 28 VDC. | ||||||||
| Charging Current | 0.5 Amps (Max) | ||||||||
| System Quiescent Current | 100mA | ||||||||
| Remote Outputs | 1 Form C relay for Fire, Fault and Cross Zoning. | ||||||||
| Contact Rating | 2A @ 30 VDC & 0.5 A @125VAC. | ||||||||
| Initiating Device Circuits (Zone Circuit) | All zones are Class B wiring | ||||||||
| Normal Operating Voltage | 14 to 21 VDC | ||||||||
| Alarm Current | 15 to 30mA | ||||||||
| Short Circuit Current | 40mA Maximum | ||||||||
| Loop resistance | 50 ohms Maximum | ||||||||
| Standby Current | 6.8mA (2.4mA for Detectors) | ||||||||
| Operating Voltage | 24VDC, 300mA Max. | ||||||||
| Operating Condition | Operating Temperature 0 to 49° C / 32-120° F. | Relative Humidity 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ± 3° F. | ||||||||
| 1) Supervised | 1 No | ||||||||
| Operating Current | 0.75A (Max) | 0.3A (Max) | ||||||||
| 2) Non: Supervised | 2 No’s | ||||||||
| Dimensions | (400W X 300H X 100D) | ||||||||
| Color | Red / White | ||||||||
| Construction | 18 Gauge (1.22mm) CRCA sheet with powder-coated Finish | ||||||||
| IP Rating | IP50 | ||||||||
| Cable Entry | 09 x ø19mm Knockout in top of the cabinet Weight | ||||||||
| Weight | 7 Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
More Ravel Agent Release Panels
Ravel 4 Zone Agent Release Panel, UL 864
A 4 zone agent release panel with separate LED indication for each release circuit, which Ravel states complies with UL 864 (10th edition) and NFPA 72.
Ravel Gas Release Repeater Panel
A repeater panel that shows all the parameters of the RE-120GR or RE-25AR agent release panel at a second location.
Ravel RS485 Interface Module for RE-25AR
An RS485 driver module for the RE-25AR agent release panel, allowing up to 32 transceivers on the serial bus.
Ravel Modbus Converter for RE-25AR
A converter that changes the RE-25AR panel's Ravel protocol to Modbus, for linking to SCADA, PLC or BMS systems.
Ravel Emergency Release and Abort Call Points, Green and Yellow
Plastic call points for agent release systems: green for manual emergency release and yellow for abort.
