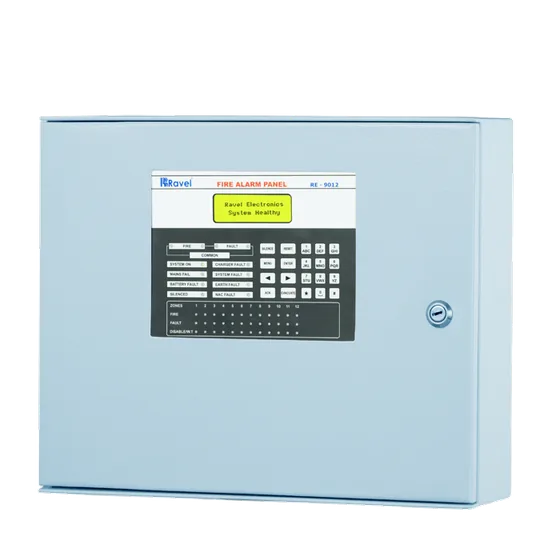

Dealer for RavelRavel RE-900 Series Conventional Fire Alarm Panels, 12 to 128 Zones
A conventional panel series from 12 to 128 zones with a 20 x 4 LCD, touch keypad, event log and RS-485 networking, for small to large buildings.
- Nine sizes: 12, 16, 20, 24, 32, 48, 64, 96 and 128 zones
- 20 x 4 LCD with alphanumeric touch keypad, event log with real time clock
- Class B, Style B / C zone circuits and Class B sounder circuits
- RS-485 for TCP/IP networking, peer to peer and repeater connection
- 2 Form C relays and a 24 V DC output (resettable or steady)
- Ravel states compliance with UL 864 and NFPA 72, and CE marking
Standards and approvals: CE, UL -864, NFPA-72
Sizes: 12 Zone to 128 Zone
Specifications
Specifications
| Specification | 12 Zone | 16 Zone | 20 Zone | 24 Zone | 32 Zone | 48 Zone | 64 Zone | 96 Zone | 128 Zone | Details | Details | Details | Details | Details | Details | Details | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Zones | 12 Zone | 16 Zone | 20 Zone | 24 Zone | 32 Zone | 48 Zone | 64 Zone | 96 Zone | 128 Zone | ||||||||
| Width | 425 | 425 | 500 | 500 | 500 | 600 | 600 | 600 | 600 | ||||||||
| Height | 350 | 350 | 600 | 600 | 600 | 700 | 1000 | 1400 | 1400 | ||||||||
| Depth | 120 | 120 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | ||||||||
| Primary Power | 120 to 220VAC ± 10%, 60 / 50 Hz. | ||||||||||||||||
| Initiating Device Circuits | All zones are | Class B Style B/C operation (Programmable). | ||||||||||||||||
| Normal Operating Voltage | 14 to 21 VDC. | ||||||||||||||||
| Alarm Current | 15 to 30mA. | ||||||||||||||||
| Short Circuit Current | 45mA Maximum. | ||||||||||||||||
| Loop resistance | 100 ohms Maximum. | ||||||||||||||||
| End-Of-Line Resistor | 4K7, 1/2watt | 4K7, 1/2watt | |||||||||||||||
| Standby Current | 7mA (2.5mA for Detectors) | ||||||||||||||||
| Standby Power | 24V D.C | ||||||||||||||||
| Quiescent current | 120 mA | ||||||||||||||||
| Operating Temperature | 0 to 49° C/32-120° F. | ||||||||||||||||
| Relative Humidity | 93 ± 2% RH (non- condensing) at 32 ±2° C/90 ±3° F. | ||||||||||||||||
| Charging Voltage | 28.0V, ±0.5V | ||||||||||||||||
| Charging Current | 1.2A(Max); | ||||||||||||||||
| D.C. Output | (Resettable / Steady) | 24VDC Output,1A Max. | ||||||||||||||||
| Type | Form C | ||||||||||||||||
| No of Relays | 2 | ||||||||||||||||
| Relay Contact Rating | 2Amps @ 30 VDC, 0.5Amps @ 125VAC. | ||||||||||||||||
| Power Factor | 1.0 | ||||||||||||||||
| Notification Appliance Circuits | Class B Style: Y wiring | ||||||||||||||||
| Operating Nominal Voltage | 24VDC | ||||||||||||||||
| Special Application Current | from 12 Zone Upto 64Zone | ||||||||||||||||
| NACs | 2 Amps (1 A per circuit) Current above 64Zone | 4 Amps (1 A per circuit) | ||||||||||||||||
| Line Drop | 1.8V |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
