Bosch BAT 100 LSN Remote Display Panel, up to 96 LEDs
A remote parallel display for Bosch LSN fire alarm systems with 32, 64 or 96 multicolour LEDs, for example to show up to 96 detection zones.

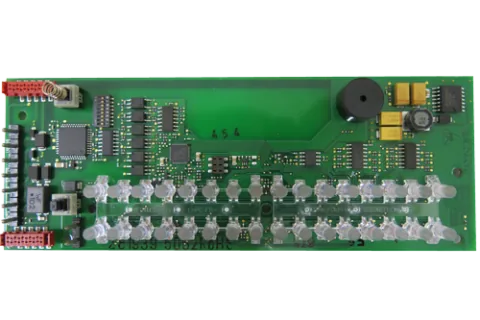

Dealer for BoschBosch ATG 420 LSNi Display Module, 32 LEDs, for BAT 100 LSN
A 32 LED display module that fits inside the BAT 100 LSN housing and shows the condition of field devices or detection zones.
- 32 indicator points with multicolour LEDs: red, green or yellow, steady or flashing
- LEDs programmed and labelled to suit the site
- Lamp test button, buzzer and tamper detection switch
- Two integrated isolators for the LSN loop
- Operating voltage 15 to 33 volts DC, operating temperature -5 to 50°C, 55 g
- Bosch lists a CMIM certificate
Standards and approvals: CMIM
Specifications
Specifications
| Specification | ATG 420 LSNI |
|---|---|
| Weight (g) | 55 |
| Operating voltage (VDC) | 15 to 33 |
| Operating temperature (°C) | -5 to 50 |
| Storage temperature (°C) | -20 to 60 |
| Dimensions (H x W x D) (mm) | 163 x 60 x 16.10 |
| LSN current consumption (mA) | 3 |
| LED color | Red; Yellow; Green |
| LED indication | Multi-color |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
