Bosch BAT 100 LSN Remote Display Panel, up to 96 LEDs
A remote parallel display for Bosch LSN fire alarm systems with 32, 64 or 96 multicolour LEDs, for example to show up to 96 detection zones.

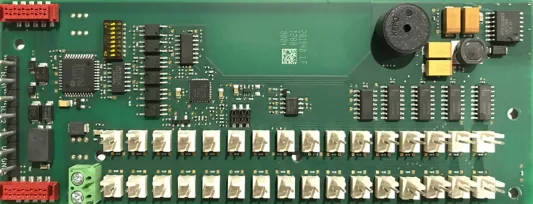

Dealer for BoschBosch ATB 420 LSNi Display Driver Module, 32 Outputs
A freely programmable module with 32 outputs that drives LEDs or other low current devices to display the status and events of field devices.
- 32 outputs with flashing capability, each switching 5 V through a 600 ohm resistor
- Drives external LEDs or other low current devices, for example on a mimic panel
- Onboard alarm buzzer and contact for output test
- Two integrated isolators for the LSN loop
- Operating voltage 15 to 33 volts DC, operating temperature -5 to 50°C, 50 g
- Bosch lists a CMIM certificate
Standards and approvals: CMIM
Specifications
Specifications
| Specification | ATB 420 LSNI |
|---|---|
| Weight (g) | 50 |
| Operating voltage (VDC) | 15 to 33 |
| Operating temperature (°C) | -5 to 50 |
| Storage temperature (°C) | -20 to 60 |
| Dimensions (H x W x D) (mm) | 163 x 60 x 13.50 |
| LSN current consumption (mA) | 3 |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
More Bosch Annunciators & Displays
Bosch ATG 420 LSNi Display Module, 32 LEDs, for BAT 100 LSN
A 32 LED display module that fits inside the BAT 100 LSN housing and shows the condition of field devices or detection zones.
