Dealer for RavelRavel 2 and 4 Zone Conventional Panels, FR ABS Housing

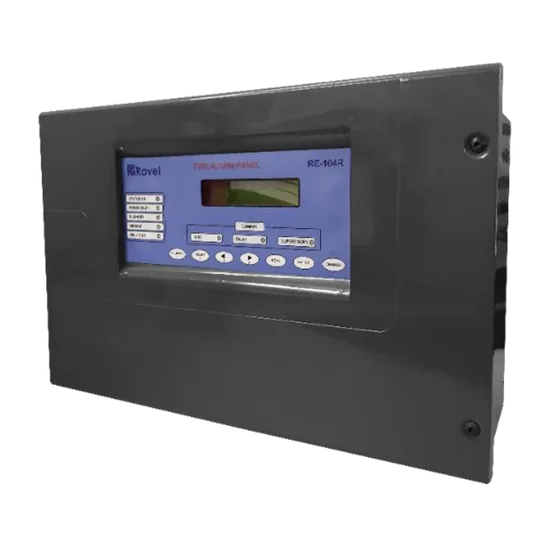

Compact 2 zone (RE-102R) and 4 zone (RE-104R) conventional panels in a black FR ABS plastic housing, field programmable from the keypad.
- 2 or 4 zones, each accepting smoke detectors and normally open contact devices
- Sounder circuits and 2 programmable Form C relays
- RS-485 port for annunciators, optional Ethernet and GSM
- Supervises wiring, AC voltage and battery level
- Tactile keypad, 16 x 2 LCD
- Ravel states CE approval
Standards and approvals: CE
Specifications
Specifications
| Specification | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Primary Power | 120 / 230VAC + 10% -15%, 60 / 50 Hz, 50W | ||||||||||
| Standby Power | 24VDC (2 Nos of 12V, 3.5Ah Sealed Lead acid battery) | ||||||||||
| Quiescent current | 55mA | ||||||||||
| Operating Condition | Operating Temperature 0 to 49° C / 32 to 120° F. | Storage Temperature 0 to 60° C | Relative Humidity 93 ± 2% RH (non-condensing) at 32 ± 2° C / 90 ± 3° F | ||||||||||
| 2 Zone | 40mA | ||||||||||
| 4 zone | 50mA | ||||||||||
| Charging voltage | 28 V ± 5% | ||||||||||
| Charging current | 350mA (max) | ||||||||||
| Quantity | 1 No | 1 No | 2 No’s (Programmable) | 2 or 4 (102R- 104R) | |||||||
| Voltage | 24VDC continuous or resettable (Regulated) | ||||||||||
| Current | 100mA (max) | 350mA | |||||||||
| Wiring style | Class B | Class B | |||||||||
| Operating voltage | 24VDC (Regulated) | ||||||||||
| EOL resistor | 4K7, 1/2 watt | ||||||||||
| Type | Form C | ||||||||||
| Relay contact rating | 1A @ 30 VDC | ||||||||||
| Power factor | 1.0 | ||||||||||
| Normal operating voltage | 14 to 21 VDC | ||||||||||
| Alarm current | 15 to 35 mA | ||||||||||
| Short circuit current | 42 mA (max) | ||||||||||
| Loop resistance | 50 Ω (max) | 100 Ohms | |||||||||
| EOL Resistor | 4K7, ½ watt | ||||||||||
| Standby Current | 6.8 mA (2.4 mA for detectors) | ||||||||||
| Nodes | 1 | ||||||||||
| Wiring Style | Class B | ||||||||||
| Wire type | Twisted pair | ||||||||||
| Circuit Length | 1.2 Km (Max) | ||||||||||
| Dimensions | 300L X 200W X 95D | ||||||||||
| Wire Size | 1.5 Sq mm | ||||||||||
| IP rating | IP 60 | ||||||||||
| Color | Black | ||||||||||
| Material | FRABS plastic | ||||||||||
| Cable Entry | 11 x ø19mm Knockout on top of the cabinet |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
