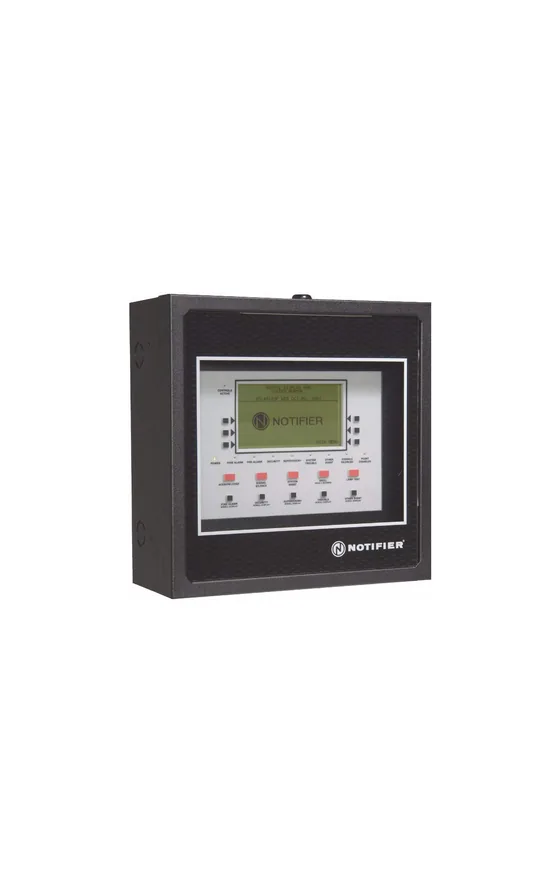

Dealer for NotifierA 640-character LCD annunciator and remote control for the NFS-3030 and NFS2-3030 that mimics the top 160 characters of the panel display.
Standards and approvals: UL: S635, ULC: CS100, MEA: 8-04-E (annunciator only), CSFM: 7120-0028:227, FM: Approved
| Specification | Details | Details |
|---|---|---|
| Input supply voltage (TB2) | Regulated, filtered 24 VDC via non-resettable power supply interface listed for fire-protective signaling use. Sources can be: panels with integrated power supplies, main power supplies (AMPS-24, etc.), auxiliary power supplies (APS-6R, etc.); or a compatible accessories output. If RDP devices are to be powered by separate power supplies, a common reference connection must be estab- lished. | |
| Data communications port (TB1) | Power-limited RDP inter- face. | |
| Current draw | Standby current: 0.300 A with backlight on, 0.075 A with backlight off. Alarm current: 0.325 A with back- light on, all LEDs active. | |
| Wiring distance | 4000 feet (1219.2 m) at 18 AWG (0.78 mm²) between the panel and the last device on the RDP bus (subject to system’s power restrictions). | |
| Wiring size | 18 to 12 AWG (0.78 to 3.1 mm²) twisted-pair cable, with characteristic impedance of 120 ohms ± 20%. | |
| Wire resistance | Limit total wire resistance to 100 ohms on the RDP bus, and 10 ohms on the RDP device power circuit. | |
| Acknowledge | Press to respond to any event or trouble sig- nal. If enabled, silences the LCD-160 piezo sounder. Sends an acknowledge message to the panel. | |
| Signal Silence | Press to send a system silence command to the panel, with the particular silencing action information stored at the FACP. Verification screen appears on networked displays. | |
| System Reset | Press to send a system reset command to the panel, with the particular reset action information stored at the FACP. Verification screen appears on networked displays. | |
| Drill | Press (hold for two seconds) to activate all silenceable fire output circuits. | |
| Lamp Test | Press to test the LED indicators and the piezo, or display firmware version numbers. | |
| Fire Alarm | Scroll/display a list of associated events. | |
| Security | Scroll/display a list of associated events. | |
| Supervisory | Scroll/display a list of associated events. | |
| Trouble | Scroll/display a list of associated events. | |
| Other Event | Scroll between prealarm and disabled events. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
