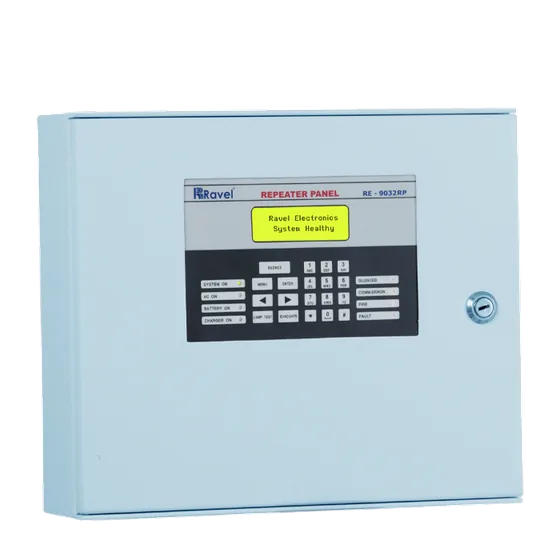

Dealer for RavelRavel RE-900 Series Repeater Panel, up to 32, 128 or 256 Zones
A repeater panel that monitors RE-900 series panels over an RS-485 network, ordered for up to 32, 128 or 256 zones.
- Versions for up to 32, 128 or 256 zones
- Monitors the status of RE-900 series panels over RS-485
- Zones of networked panels can be disabled or enabled
- Up to 16 panels, including repeaters, on one network
- 20 x 4 LCD, alphanumeric keypad, lamp test
Specifications
Specifications
| Specification | RE-9032 RP | RE-9032 RP | RE-9032 RP | RE-9032 RP | RE-9032 RP | RE-9032 RP |
|---|---|---|---|---|---|---|
| AC Power | 120-220 VAC,60/ 50 Hz | |||||
| Battery (Lead Acid only) | 24V D.C (2 Nos of 12v, 7Ah (Max.) Sealed Lead acid battery) | |||||
| Charging Current | Constant Voltage: 27.6v @ 0.5A (Max.). | Constant Voltage: 27.6v @ 0.5A (Max.). | ||||
| System Quiescent Current | 70mA | 70mA | ||||
| Operating Condition | Relative Humidity 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ± 3° F. | |||||
| Operating Temperature | 0 to 49° C / 32-120° F. | |||||
| Operating Nominal Voltage | 24 VDC | |||||
| Sounder (NAC) output | 0.5A | |||||
| End-Of-Line Resistor | 4.7K, 1/4watt | |||||
| Potential Free Relay Contact | 24V D.C (2 Nos of 12v, 7Ah (Max.) Sealed Lead acid battery) | |||||
| Type | Form C | |||||
| No of Relays | 1 | |||||
| Relay Contact Rating | 2 Amps @ 30 VDC, 0.5 Amps @125 VAC, Battery (Lead Acid only) | |||||
| Dimensions | (350W X 300H X 100D) | |||||
| Color | White | |||||
| Construction | 18 Gauge (1.22mm) CRCA sheet with powder-coated Finish | |||||
| IP Rating | IP50 | |||||
| Cable Entry | 11xø19mm Knockout in top of the cabinet |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
