Ravel Sounder Strobe with Selectable Candela (RE-716SS)
A slim sounder strobe for fire, burglar and emergency alarm systems, with four light output settings and two tone settings.

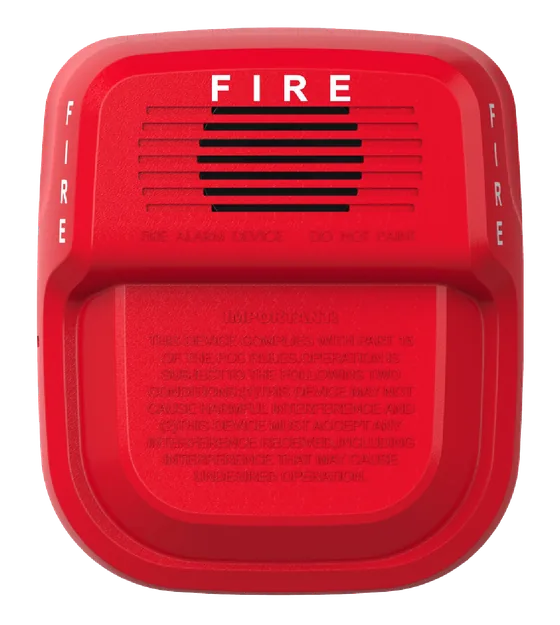

Dealer for RavelRavel Fire Alarm Sounder with Two Tones
A red wall or ceiling sounder with continuous and Temporal 3 tone settings, for 24 V DC fire, burglar and emergency alarm circuits.
- Continuous or Temporal 3 tone
- 75 dB to 85 dB at 1 m
- 24 V DC (16 to 33 V DC) or FWR, 25 mA
- Red ABS plastic, surface or flush mounting
- Ravel lists UL 464
Standards and approvals: UL 464
Specifications
Specifications
| Specification | RE-716S0 |
|---|---|
| Operating Voltage | 24V DC(16-33 VDC)/FWR |
| Operating Current | 25mA |
| Sound Level | 75dB to 85dB@1m |
| Operating Temperature | 0 to 49° C / 32-120° F. |
| Tone Type | Continuous and Temporal 3 |
| Material | ABS Plastic |
| Colour | Red |
| Dimensions | 120 H mm X 140 L mm X 51 D mm |
| Mounting Type | Surface / Flush Mount |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
