Ravel Strobe with Selectable Candela (RE-716ST)
A visual alarm strobe with a high power cool white LED and four light output settings, for ceiling or flush wall mounting.

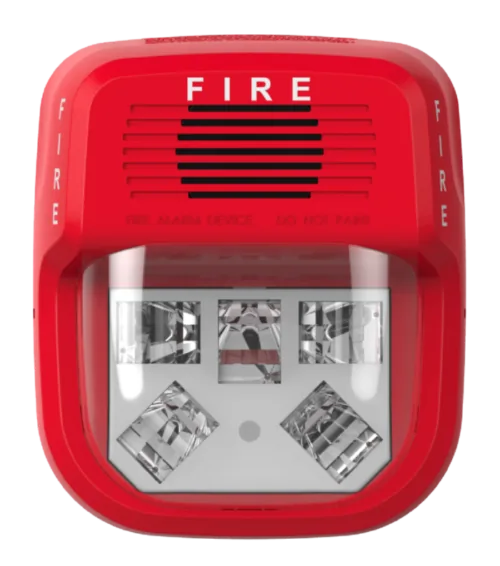

Dealer for RavelRavel Sounder Strobe with Selectable Candela (RE-716SS)
A slim sounder strobe for fire, burglar and emergency alarm systems, with four light output settings and two tone settings.
- Four candela settings: 15, 30, 75 and 110 cd
- Continuous or Temporal 3 tone, 75 dB to 85 dB
- White LED flashing once per second
- 24 V DC (16 to 33 V DC) or FWR, 2 wire
- Fits a standard 4 x 4 inch back box
- Ravel lists UL 1971, UL 464, ULC-S525 and ULC-S526
Standards and approvals: UL 1971, UL 464
Specifications
Specifications
| Specification | RE-716SS |
|---|---|
| Light Source & Color | High Power Cool White LED |
| Pulse Duration | 20ms |
| Operating Voltage | 24V DC (16-33V DC)/FWR |
| Max. Current Draw | 67-93mA |
| Sounder Output | 75 dB to 85 dB |
| Wiring | 2 Wire Type |
| Flash Rate | 1 flash per second |
| Size | 140(W)*120(H)*51(D)mm |
| Mounting Options | Standard 4’’ * 4”back box |
| Screw Terminals | # 12 to # 18 AWG wires |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
