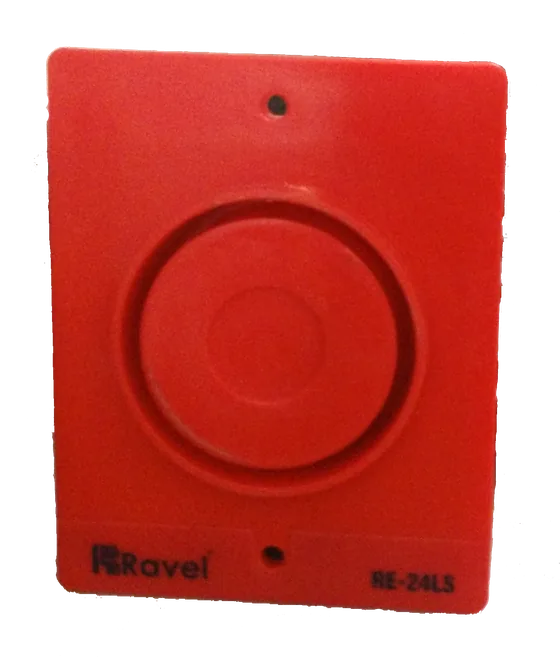

Dealer for RavelRavel Loop Powered Addressable Sounder with Back Box (RE-24LS)
An addressable piezo sounder powered from the detection loop and addressed with DIP switches. Ravel names the Avani addressable panel as compatible.
- Loop powered, no separate sounder circuit
- Addressed with an 8 way DIP switch
- Fire engine siren tone, 85 dB at 1 m
- Low standby current of 0.5 mA
- Wall or ceiling mounting with back box
Specifications
Specifications
| Specification | RE-24LS |
|---|---|
| Operating Voltage | 17 ~ 28 VDC |
| Operating Current | 15mA Max |
| Sound Level | 85dB@1m |
| Sounder Type | Piezo Electric Type |
| Tone Type | Fire Engine Siren |
| Material | ABS Plastic |
| Mounting Type | Surface / Flush Mount | Surface / Flush Mount |
| Dimensions | 96 H mm X 76 L mm X 28 D mm |
| Back Box | 95 H mm X 75 L mm X 58 D mm |
| Standby Current | 0.5 mA |
| Loop Impedance | 40 Ohms |
| Operating Temperature | 0oC to 49oC / 32o- 120oF |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F. |
| Height | 46 mm with base |
| Diameter | 100 mm dia |
| Weight | 150g with base |
| IP Rating | IP: 42 |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
