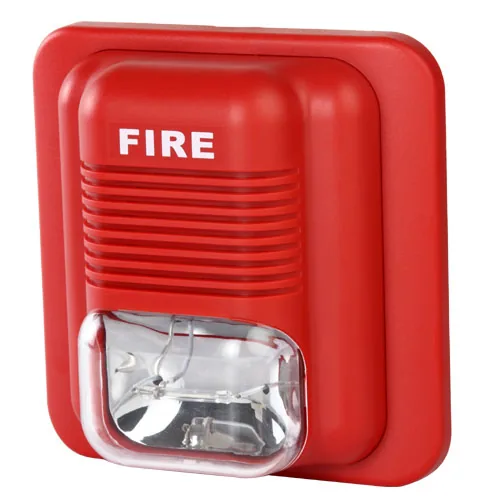

Dealer for RavelRavel Sounder Strobe with Three Tones (RE-25SS)
A sounder strobe in FR ABS plastic with ambulance, police car and fire engine tones, for ceiling or flush wall mounting.
- Three tones: ambulance, police car and fire engine
- Operates on 24 V DC (15 to 30 V)
- Ceiling or flush wall mounting
- FR ABS plastic, -10 to 50 °C
- Size 126 W x 126 H x 55 D (mm)
Specifications
Specifications
| Specification | RE-25SS |
|---|---|
| Material | FR ABS Plastic |
| Input Voltage | 24V DC (15-30V) |
| Current | 100 mA @24V |
| Relative Humidity | 93 ± 2 @ 32OC |
| Operating Temperature | -10 to 50OC |
| Sound Level | 88 db +/- 5dB @ 30cm |
| Tone Type | 1. Ambulance 2. Police car 3. Fire Engine |
| Size | 126(W)*126(H)*55(D)mm |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
