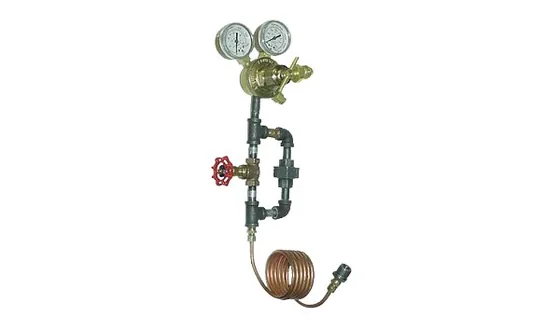

Supplier for TycoTyco Model AMD-3 Nitrogen Maintenance Device, High Pressure Cylinder Type (TFP1241)
An automatic, field adjustable device that reduces nitrogen from a high pressure cylinder to hold the pressure in a dry pipe system, preaction system or dry pilot line.
- Two-stage regulator keeps the outlet pressure constant as the cylinder pressure falls to the set point
- Field adjustable outlet pressure range 4 to 60 psi
- Used where no dependable plant or local air supply exists, where the piping needs gas with a low dew point, or where explosive vapours rule out an automatic air compressor
- Re-designation of the Gem Model F328
- Tyco lists UL and C-UL Listing and FM Approval
Standards and approvals: UL and C-UL Listed, FM Approved
Specifications
Specifications
| Specification | Details |
|---|---|
| Field-Adjustable Outlet | Pressure Range 4 to 60 psi (0,4 to 4,1 bar) |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
