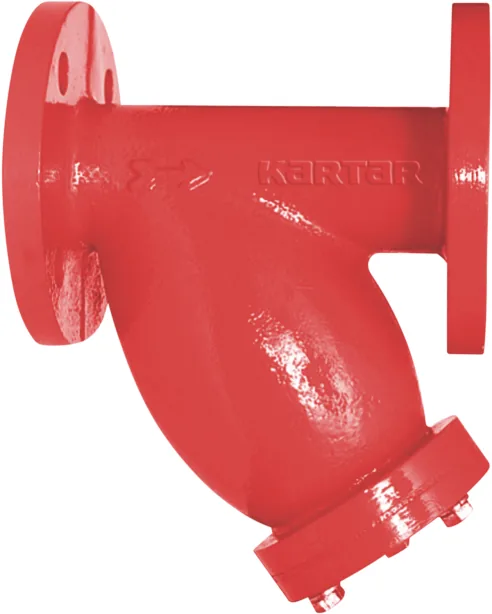

Authorised distributor for Kartar ValvesA red cast iron flanged Y type strainer with S.S. mesh in PN 16 for fire lines. Sizes 50 mm to 200 mm, higher on request.
| Specification | K-939 |
|---|---|
| Item Description | RED COLOR Cast Iron Flanged Y-Type Strainer with S.S. Mesh in PN 16. |
| Size | 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm |
| Note | Higher sizes are available on request. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
Sizes: 25 mm to 300 mm
Swing type foot valve with a single door and rubber seat, flanged ends drilled to IS 1538, made to IS 4038; the product list gives K518 from 50 mm to 150 mm. Kartar's website lists the range in grey cast iron or ductile iron, swing or lift type, with sizes from 15 mm to 300 mm across its versions.
Swing type foot valve with a double door and rubber seat, flanged ends drilled to IS 1538, made to IS 4038, from 200 mm to 400 mm (350 mm and 400 mm in development).
A ductile iron ball type foot valve with an EPDM encapsulated DI ball, 250 micron epoxy coating and flanged ends drilled to IS 1538, in PN 1.6. Sizes 50 mm to 200 mm.
A red ductile iron ball type foot valve with flanged ends in PN 16 for fire pump suctions. Sizes 50 mm to 200 mm, higher on request.
A cast iron Y type strainer with flanged ends drilled to IS 1538, SS mesh and a drain plug, in PN 1.0. Sizes 50 mm to 300 mm.
A ductile iron Y type strainer with flanged ends drilled to IS 1538, SS mesh, drain plug and 100 micron epoxy coating: K527 D in PN 1.6 from 50 mm to 400 mm, and the made to order high pressure K527-X in PN2.0 from 80 mm to 200 mm.
Sizes: 15 mm to 50 mm
Forged brass Y-type strainer with a screwed in cover and stainless steel filter, for small bore water lines. Sizes 15 mm to 50 mm.
Sizes: 40 mm to 200 mm
Cast carbon steel (ASTM A-216 Gr. WCB) Y strainer with bolted cover, for higher pressure and temperature lines up to 400°C. Flanged, 40 mm to 200 mm.
Sizes: 40 mm to 350 mm
Cast iron Y-type strainer rated PN 10, with an SS 304 perforated screen and flanges to BS 10 Table F, for lines from 40 mm to 350 mm.
Sizes: 40 mm to 250 mm
Higher pressure PN 16 version of Zoloto's cast iron Y-type strainer, rated 16 kg/cm²g, with an SS 304 screen, from 40 mm to 250 mm.
