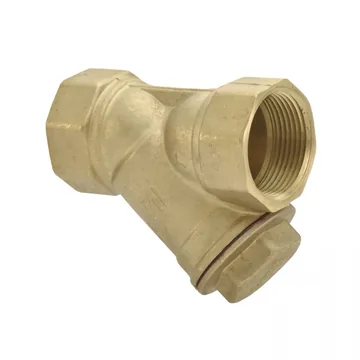

Sant Valves BF Brass Filter Valve (Y-Type Strainer)
Sizes: 15 mm to 50 mm
Forged brass Y-type strainer with a screwed in cover and stainless steel filter, for small bore water lines. Sizes 15 mm to 50 mm.
Strainers and Foot Valves in Bhopal
Strainers trap debris in a water line before it reaches pumps, valves and other equipment, and foot valves sit at the bottom of a pump suction pipe, letting water flow to the pump and closing if the flow reverses. Fire Protection System supplies Y type and T type strainers and cast iron, ductile iron and gun metal foot valves from Sant Valves, Kartar Valves and Zoloto in Bhopal and across Madhya Pradesh.
Sant Valves

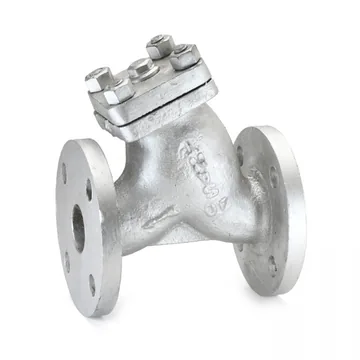

Sant Valves CS-3A Cast Steel Y-Type Strainer, Flanged
Sizes: 40 mm to 200 mm
Cast carbon steel (ASTM A-216 Gr. WCB) Y strainer with bolted cover, for higher pressure and temperature lines up to 400°C. Flanged, 40 mm to 200 mm.
Sant Valves

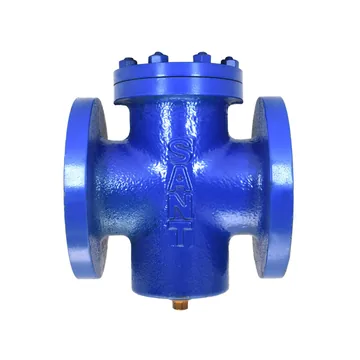

Sant Valves CI-19 Cast Iron T Strainer, Flanged
Sizes: 50 mm to 200 mm
Tee type cast iron strainer with a bolted bonnet, so the screen lifts out from the top. Flanged to Class-150, 50 mm to 200 mm.
Sant Valves

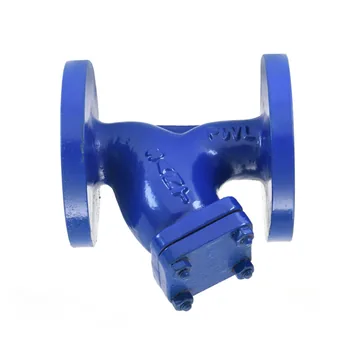

Sant Valves CI-16B Cast Iron Y-Type Strainer, Flanged, PN16
Sizes: 25 mm to 300 mm
Flanged cast iron Y strainer with bolted cover, rated PN16, for water mains. Sizes 25 mm to 300 mm.
Sant Valves

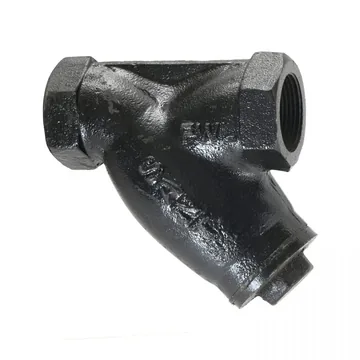

Sant Valves CI-16 Cast Iron Y-Type Strainer, Screwed
Sizes: 15 mm to 50 mm
Screwed cast iron Y strainer with a screwed in cover, for small bore water lines up to 225°C. Sizes 15 mm to 50 mm.
Sant Valves

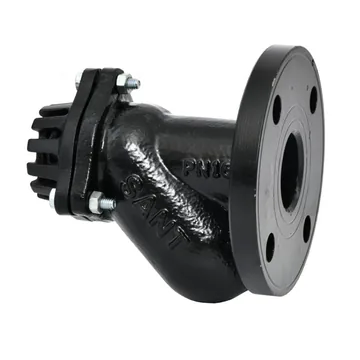

Sant Valves BFV Cast Iron Ball Foot Valve, Y Pattern, PN16, Flanged
Sizes: 80 mm to 250 mm
Y pattern cast iron foot valve with a rubber coated MS ball, nitrile rubber seat ring and cast iron strainer, rated PN16. Flanged to IS 1538, 80 mm to 250 mm.
Sant Valves

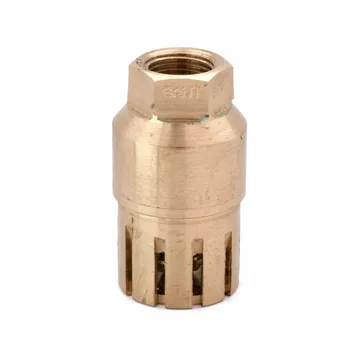

Sant Valves IS-21 Bronze Foot Valve, Screwed
Sizes: 15 mm to 100 mm
Two piece gun metal foot valve with a synthetic rubber O ring and integral seat, for water. Screwed ends, 15 mm to 100 mm.
Kartar Valves

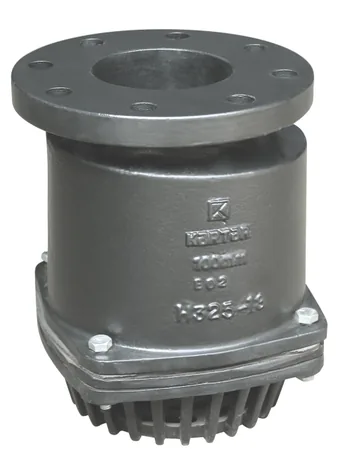

Kartar Valves Single Door Foot Valve, Cast Iron, IS 4038 (K518)
Sizes: 25 mm to 300 mm
Swing type foot valve with a single door and rubber seat, flanged ends drilled to IS 1538, made to IS 4038; the product list gives K518 from 50 mm to 150 mm. Kartar's website lists the range in grey cast iron or ductile iron, swing or lift type, with sizes from 15 mm to 300 mm across its versions.
Kartar Valves

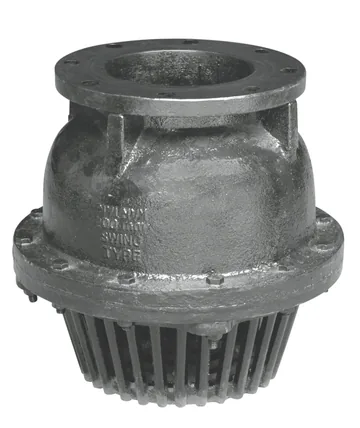

Kartar Valves Double Door Foot Valve, Cast Iron, IS 4038 (K519)
Swing type foot valve with a double door and rubber seat, flanged ends drilled to IS 1538, made to IS 4038, from 200 mm to 400 mm (350 mm and 400 mm in development).
Kartar Valves

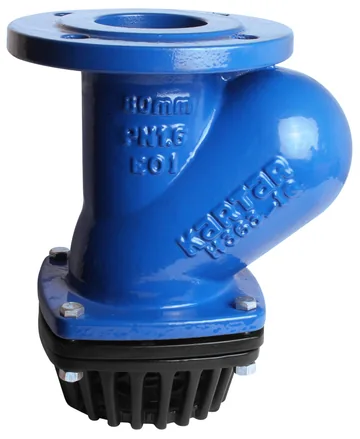

Kartar Valves DI Ball Type Foot Valve, PN 1.6 (K521)
A ductile iron ball type foot valve with an EPDM encapsulated DI ball, 250 micron epoxy coating and flanged ends drilled to IS 1538, in PN 1.6. Sizes 50 mm to 200 mm.
Kartar Valves

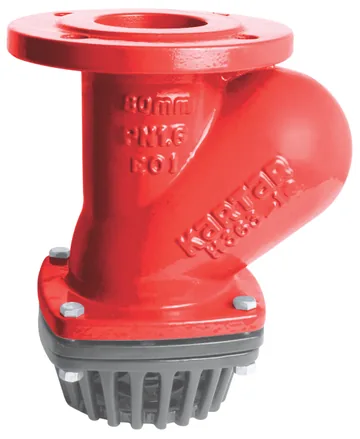

Kartar Valves Red DI Ball Type Foot Valve, PN 16 (K-941)
A red ductile iron ball type foot valve with flanged ends in PN 16 for fire pump suctions. Sizes 50 mm to 200 mm, higher on request.
Kartar Valves

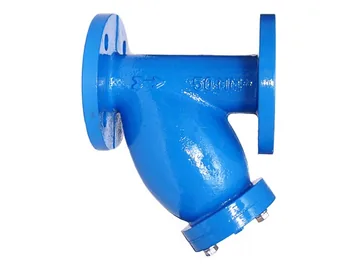

Kartar Valves CI Y Type Strainer, Flanged, PN 1.0 (K527)
A cast iron Y type strainer with flanged ends drilled to IS 1538, SS mesh and a drain plug, in PN 1.0. Sizes 50 mm to 300 mm.
Kartar Valves

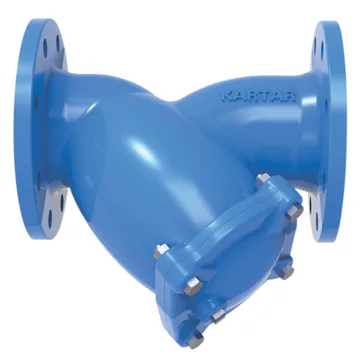

Kartar Valves DI Y Type Strainer, Flanged, PN 1.6 and PN2.0 (K527 D, K527-X)
A ductile iron Y type strainer with flanged ends drilled to IS 1538, SS mesh, drain plug and 100 micron epoxy coating: K527 D in PN 1.6 from 50 mm to 400 mm, and the made to order high pressure K527-X in PN2.0 from 80 mm to 200 mm.
Kartar Valves

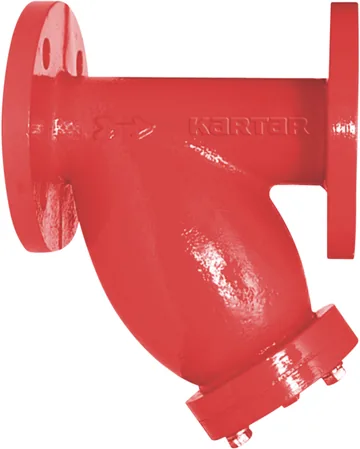

Kartar Valves Red CI Y Type Strainer, SS Mesh, PN 16 (K-939)
A red cast iron flanged Y type strainer with S.S. mesh in PN 16 for fire lines. Sizes 50 mm to 200 mm, higher on request.
Kartar Valves

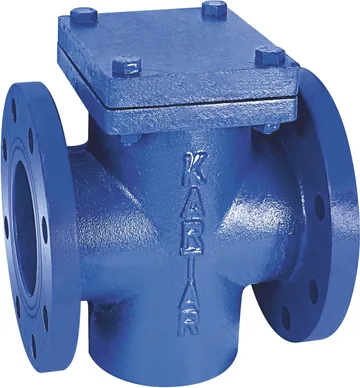

Kartar Valves CI T Type Strainer, Flanged, PN 1.0 (K528)
A cast iron T type strainer with flanged ends drilled to IS 1538, SS mesh and a drain plug, in PN 1.0. Sizes 50 mm to 500 mm.
Kartar Valves
Kartar Valves Cast Steel Y Type Strainer, Class 150 (K403)
A cast steel Y type strainer with flanged ends drilled to CL-150 and an SS-304 mesh. Sizes 40 mm to 300 mm.
Kartar Valves
Kartar Valves Bronze Y Type Strainer, Screwed (K-612)
Sizes: 15 mm to 50 mm
Bronze Y type strainer with screwed female ends, from 15 mm to 50 mm, with a brass or stainless steel perforated screen guided in the body and cover. Listed for water, oil, steam and marine use.
Kartar Valves
Kartar Valves Cast Iron Y Type Strainer, SS Screen, Screwed (K-105)
Cast iron Y type strainer with a stainless steel screen and screwed female ends with BSP taper threads, from 15 mm to 50 mm. Suits steam up to 13 kg/cm2 at a maximum working temperature of 220°C.
Zoloto

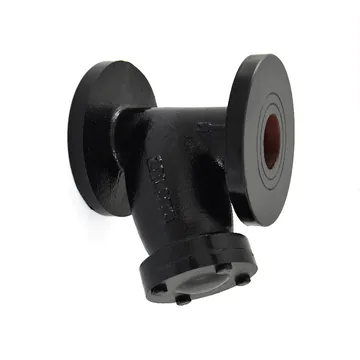

Zoloto Cast Iron Y-Type Strainer, PN 10, Flanged (1084)
Sizes: 40 mm to 350 mm
Cast iron Y-type strainer rated PN 10, with an SS 304 perforated screen and flanges to BS 10 Table F, for lines from 40 mm to 350 mm.
Zoloto

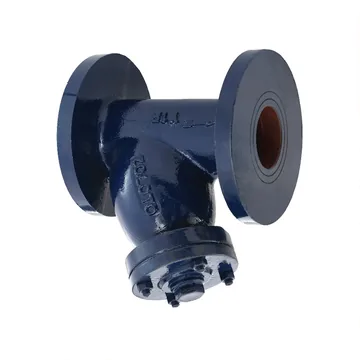

Zoloto Cast Iron Y-Type Strainer, PN 16, Flanged (1084A)
Sizes: 40 mm to 250 mm
Higher pressure PN 16 version of Zoloto's cast iron Y-type strainer, rated 16 kg/cm²g, with an SS 304 screen, from 40 mm to 250 mm.
Zoloto

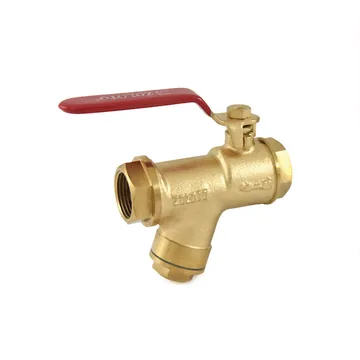

Zoloto Bronze Ball Valve with Integral Strainer, Screwed (1085)
Sizes: 15 mm, 20 mm, 25 mm
Two piece bronze ball valve with an SS 304 strainer screen built in, with BSP female ends, for refrigeration and HVAC lines from 15 mm to 25 mm.
Zoloto

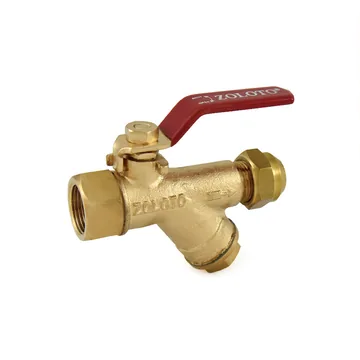

Zoloto Bronze Ball Valve with Integral Strainer and Flare Nut (1085A)
Sizes: 15 mm, 20 mm, 25 mm
Bronze ball valve with a built in SS 304 strainer, a BSP female inlet and a 5/8 inch BSP male outlet with flare nut, for refrigeration and HVAC connections from 15 mm to 25 mm.
How to choose
For a foot valve, start with the pump suction size and the closing design. Kartar Valves makes swing type foot valves to IS 4038 with rubber seats and flanged ends drilled to IS 1538, in single door (K518, 50 mm to 150 mm in its product list) and double door (K519, from 200 mm) versions, and lists the range in grey cast iron or ductile iron, swing or lift type, from 15 mm to 300 mm across its versions. Ball type foot valves include the Kartar Valves ductile iron K521 (PN 1.6, 50 mm to 200 mm), the red Kartar Valves K-941 for fire pump suctions in PN 16, and the Sant Valves BFV, a Y pattern cast iron ball foot valve with a rubber coated ball, nitrile rubber seat ring and cast iron strainer, rated PN16 and flanged to IS 1538 from 80 mm to 250 mm. For small pumps, the Sant Valves IS-21 is a screwed gun metal foot valve from 15 mm to 100 mm.
For a strainer, choose the pattern. A Y type strainer holds its screen in an angled leg of the body, while a T type strainer holds it in a tee shaped body so the screen lifts out from the top. Kartar Valves (K528, 50 mm to 500 mm) and Sant Valves (CI-19, with a bolted bonnet) offer T type strainers, and all three makers offer Y type. Screens are stainless steel on most models: Sant Valves uses SS 304 screens with 1.2 mm perforations, Zoloto SS 304 screens with 3 mm holes and Kartar Valves SS mesh, with a brass or stainless steel screen on its bronze K-612.
Then match material, size and pressure. For flanged water mains, cast iron Y strainers come from Kartar Valves (K527 in PN 1.0 from 50 mm to 300 mm, and the red K-939 for fire lines in PN 16), Sant Valves (CI-16B, PN16, 25 mm to 300 mm) and Zoloto (1084 in PN 10 from 40 mm to 350 mm, 1084A in PN 16 from 40 mm to 250 mm), and the ductile iron Kartar Valves K527 D runs in PN 1.6 up to 400 mm. Check the flanges: the Kartar Valves K527 and K528 are drilled to IS 1538, while the Sant Valves CI-16B and the Zoloto strainers use BS 10 Table F. For small bore lines, choose a screwed strainer from 15 mm to 50 mm: the Sant Valves CI-16 in cast iron (up to 225°C) or BF in forged brass, or the Kartar Valves K-612 in bronze or K-105 in cast iron, the K-105 being listed for steam up to 13 kg/cm2 at 220°C. For higher pressure and temperature lines there are cast steel strainers: the Kartar Valves K403 (Class 150, 40 mm to 300 mm) and the Sant Valves CS-3A (40 mm to 200 mm, up to 400°C).
Zoloto also offers bronze ball valves with an integral SS 304 strainer (1085, and 1085A with a flare nut) for refrigeration and HVAC lines from 15 mm to 25 mm. Fit a strainer ahead of the pump, valve or equipment that debris could block, and leave room to open its cover and clean the screen during maintenance. FPS supplies, installs and maintains strainers and foot valves in pump rooms and water lines across Madhya Pradesh.
Frequently asked questions
What does a foot valve do?
A foot valve sits at the bottom of a pump suction pipe. It lets water flow to the pump and closes automatically if the flow reverses, so the suction pipe stays full of water when the pump stops.
Does a foot valve include a strainer?
Many foot valves do. The Sant Valves BFV ball foot valve has a cast iron strainer built in, which keeps large debris out of the pump suction.
Should I choose a Y type or T type strainer?
A Y type strainer holds the screen in an angled leg of the body, and a T type strainer holds it in a tee shaped body so the screen lifts out from the top. Sant Valves and Kartar Valves offer both types, and Zoloto offers Y type strainers.
What is IS 4038?
It is the Indian standard for foot valves that Kartar Valves makes its single door (K518) and double door (K519) swing type foot valves to, with rubber seats and flanged ends drilled to IS 1538. Kartar Valves lists the range in grey cast iron or ductile iron, swing or lift type.
Which strainer suits a pump main?
For flanged water mains, a cast iron or ductile iron Y strainer is the usual choice, such as the Kartar Valves K527 or K527 D, the Sant Valves CI-16B or the Zoloto 1084 and 1084A, in a pressure rating that covers the line. FPS can confirm the size and flange drilling against your pump and pipework.
Does FPS supply strainers and foot valves, and how do I get a price?
FPS is an authorised distributor of Sant Valves and Kartar Valves and a dealer for Zoloto, and it supplies, installs and maintains strainers and foot valves in Bhopal and across MP. Prices depend on type, size and material and are shared on request: call or WhatsApp +91 92440 89060.
