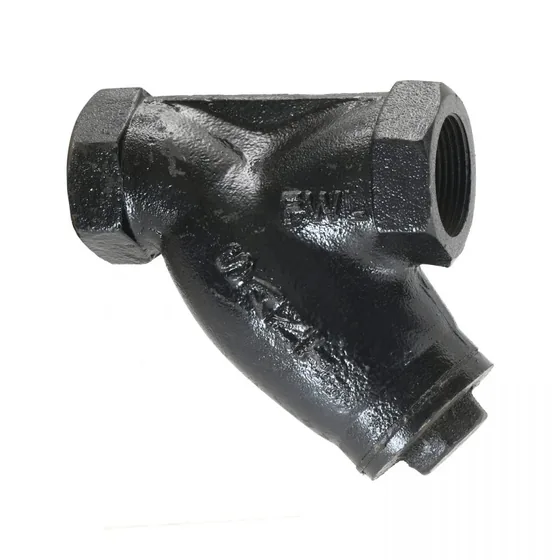

Authorised distributor for Sant ValvesSant Valves CI-16 Cast Iron Y-Type Strainer, Screwed
Screwed cast iron Y strainer with a screwed in cover, for small bore water lines up to 225°C. Sizes 15 mm to 50 mm.
- Cast iron body to IS:210 Gr.FG200, screwed in cover
- SS AISI-304 screen with 1.2 mm perforations
- Female BSP parallel threads to BS 21
- Working pressure 16 kg/cm², body test 24 kg/cm², maximum 225°C
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm |
|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 |
| F | 70±2 | 90±2 | 125±2 | 125±2 | 160±2 | 200±2 |
| H (Approx.) | 55 | 60 | 95 | 105 | 120 | 160 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
