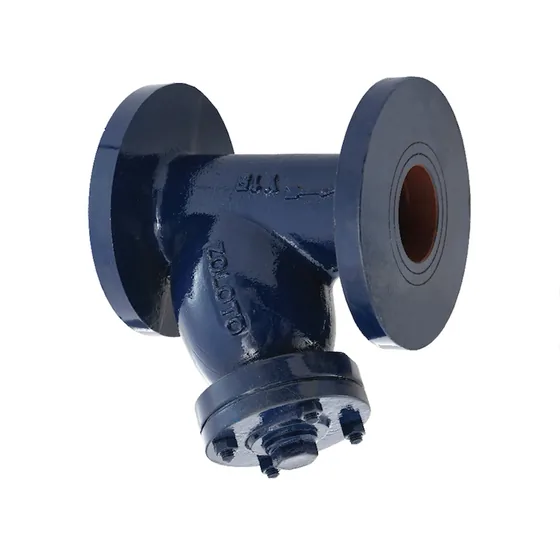

Dealer for ZolotoZoloto Cast Iron Y-Type Strainer, PN 16, Flanged (1084A)
Higher pressure PN 16 version of Zoloto's cast iron Y-type strainer, rated 16 kg/cm²g, with an SS 304 screen, from 40 mm to 250 mm.
- SS 304 perforated sheet screen with 3 mm holes, guided in body and cover
- Large screening area
- Streamlined body for a low pressure drop
- Flanged ends to BS 10 Table F
- Maximum working pressure 16 kg/cm²g (225 psig)
Sizes: 40 mm to 250 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 1084A |
|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | |
| Size (mm) | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | |
| A ±2 | 165 | 180 | 206 | 260 | 295 | 385 | 385 | 525 | 700 | |
| B +3 | 16 | 19 | 19 | 19 | 22.2 | 25.4 | 25.4 | 28.6 | 28.6 | |
| ØC +3 | 139.7 | 165.1 | 184.2 | 203.2 | 228.6 | 279.4 | 304.8 | 368.3 | 431.8 | |
| D ~ | 152 | 169 | 180 | 242 | 267 | 320 | 331 | 434 | 533 | |
| Shell | 24 kg/cm²g (340 psig) | |||||||||
| Maximum Working Pressure | 16 kg/cm²g (225 psig) |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
