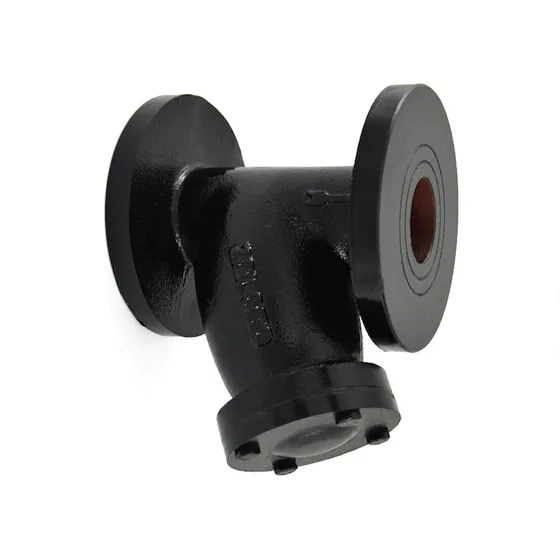

Dealer for ZolotoZoloto Cast Iron Y-Type Strainer, PN 10, Flanged (1084)
Cast iron Y-type strainer rated PN 10, with an SS 304 perforated screen and flanges to BS 10 Table F, for lines from 40 mm to 350 mm.
- SS 304 perforated sheet screen with 3 mm holes, guided in body and cover
- Large screening area
- Streamlined body for a low pressure drop
- Flanged ends to BS 10 Table F
- Maximum working pressure 10 kg/cm²g (150 psig), temperature 220°C
Sizes: 40 mm to 350 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm | 350 mm | 1084 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| Size (mm) | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | |
| A ±2 | 165 | 180 | 206 | 260 | 295 | 385 | 385 | 525 | 700 | 750 | 850 | |
| B +3 | 16 | 19 | 19 | 19 | 22.2 | 25.4 | 25.4 | 28.6 | 28.6 | 31.8 | 35 | |
| ØC +3 | 140 | 165 | 184.5 | 203.2 | 228.6 | 279.4 | 305 | 368.3 | 431.8 | 489 | 552.5 | |
| D ~ | 152 | 175 | 180 | 238 | 250 | 320 | 320 | 395 | 515 | 570 | 620 | |
| Shell | 15 kg/cm²g (220 psig) | |||||||||||
| Maximum Working Pressure | 10 kg/cm²g (150 psig) | |||||||||||
| Maximum Working Temperature | 220°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
