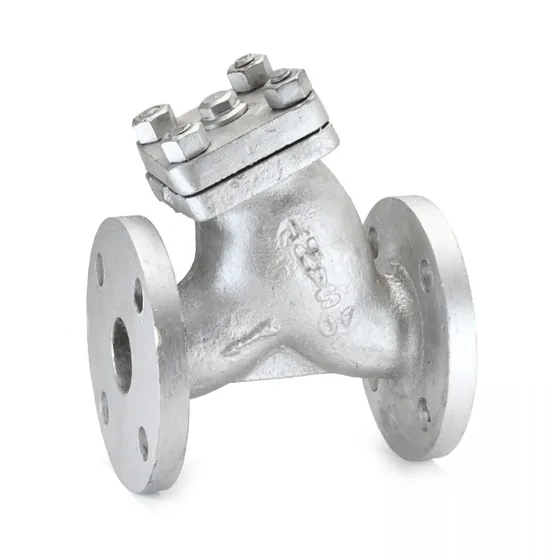

Authorised distributor for Sant ValvesSant Valves CS-3A Cast Steel Y-Type Strainer, Flanged
Cast carbon steel (ASTM A-216 Gr. WCB) Y strainer with bolted cover, for higher pressure and temperature lines up to 400°C. Flanged, 40 mm to 200 mm.
- Cast carbon steel WCB body, bolted cover
- AISI-304 screen with 1.2 mm perforations
- Flanges to BS10 Table F or Class-150
- Maximum working pressure 20 kg/cm², body test 40 kg/cm², maximum temperature 400°C
Sizes: 40 mm to 200 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 150 mm | 200 mm |
|---|---|---|---|---|---|---|---|
| Nominal Size | 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| Nominal Size (Inches) | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 6 | 8 |
| F | 165±2 | 185±2 | 206±2 | 255±2 | 295±2 | 385±2 | 475±3 |
| H (Approx.) | 145 | 155 | 185 | 210 | 255 | 300 | 375 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
