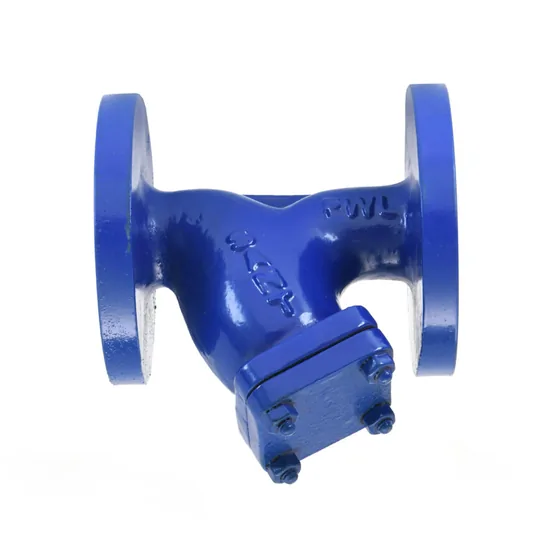

Authorised distributor for Sant ValvesSant Valves CI-16B Cast Iron Y-Type Strainer, Flanged, PN16
Flanged cast iron Y strainer with bolted cover, rated PN16, for water mains. Sizes 25 mm to 300 mm.
- Cast iron body to IS:210 Gr.FG200, bolted cover
- SS AISI-304 screen with 1.2 mm perforations
- Flanges to BS 10 Table F, undrilled
- Body test 24 kg/cm², working test 16 kg/cm²
Sizes: 25 mm to 300 mm
Specifications
Specifications
| Specification | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Nominal Size (Inches) | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| F | 140±2 | 155±2 | 165±2 | 185±2 | 206±2 | 255±2 | 295±2 | 350±2 | 385±2 | 475±2 | 560±2 | 660±2 |
| D | 120.7 | 133.5 | 139.7 | 165.1 | 184.2 | 203.2 | 228.6 | 279.4 | 304.8 | 368.3 | 431.8 | 489 |
| T | 12.7 | 15.9 | 15.9 | 19.1 | 19.1 | 19.1 | 22.2 | 25.4 | 25.4 | 28.6 | 28.6 | 31.8 |
| H (Approx) | 110 | 120 | 140 | 160 | 180 | 210 | 255 | 285 | 310 | 415 | 500 | 600 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
