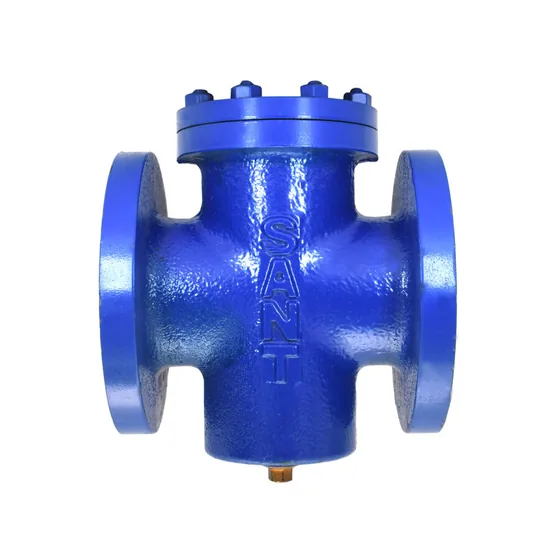

Authorised distributor for Sant ValvesSant Valves CI-19 Cast Iron T Strainer, Flanged
Tee type cast iron strainer with a bolted bonnet, so the screen lifts out from the top. Flanged to Class-150, 50 mm to 200 mm.
- Cast iron body to IS 210 Gr FG 200
- SS 304 screen with 1.2 perforation
- Bolted bonnet, flanged to Class-150
- Body test 300 psig
Sizes: 50 mm to 200 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 150 mm | 200 mm |
|---|---|---|---|---|---|---|
| Nominal Size | 50 | 65 | 80 | 100 | 150 | 200 |
| Nominal Size (Inches) | 2 | 2 1/2 | 3 | 4 | 6 | 8 |
| F | 160±2 | 185±2 | 206±2 | 254±2 | 305±2 | 380±2 |
| H (Approx.) | 115 | 140 | 150 | 175 | 200 | 245 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
