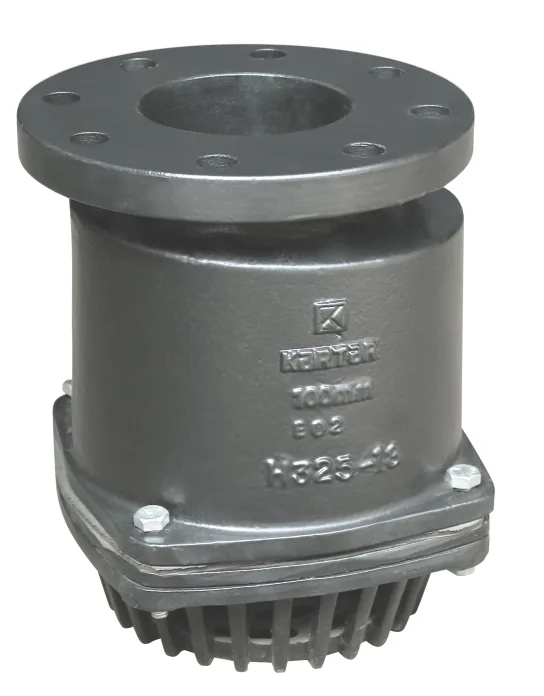

Authorised distributor for Kartar ValvesKartar Valves Single Door Foot Valve, Cast Iron, IS 4038 (K518)
Swing type foot valve with a single door and rubber seat, flanged ends drilled to IS 1538, made to IS 4038; the product list gives K518 from 50 mm to 150 mm. Kartar's website lists the range in grey cast iron or ductile iron, swing or lift type, with sizes from 15 mm to 300 mm across its versions.
- Single door, rubber seat, swing type
- Flanged ends drilled to IS 1538
- IS 4038
- K518: 50 mm to 150 mm (product list)
- Website: screwed swing type from 15 mm, lift type 25 mm to 100 mm
Standards and approvals: IS : 4038
Sizes: 25 mm to 300 mm
Specifications
Specifications
| Specification | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm | Details | Details | K518 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |||
| Size (mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |||
| D (max) | 20 | 140 | 150 | 160 | 220 | 240 | 290 | 340 | 380 | 580 | 625 | 750 | |||
| Body | 1.5 MPa | ||||||||||||||
| Seat | 1.0 MPa | Grey Cast Iron IS : 210 FG.200 | |||||||||||||
| Housing | Grey Cast Iron / Ductile Iron | ||||||||||||||
| Hinge Pin | High Tensile Brass IS : 320, HT2 | ||||||||||||||
| Disc Guide Pin | High Tensile Brass IS : 320, HT2 | ||||||||||||||
| Disc | Grey Cast Iron IS : 210 FG.200 | ||||||||||||||
| Disc Face | Natural Rubber with canvas reinforcement IS:5192 | ||||||||||||||
| Disc Plate | Grey Cast Iron IS : 210 FG.200 | ||||||||||||||
| Strainer | Grey Cast Iron IS : 210 FG.200 | ||||||||||||||
| Item | Kartar Cast Iron Foot Valves - (Single Door with Rubber Seat) | ||||||||||||||
| Ends | Flanged | ||||||||||||||
| Type | Swing Type | ||||||||||||||
| Door | Single | ||||||||||||||
| Drilling | IS:1538 | ||||||||||||||
| Design Standard | IS:4038 | ||||||||||||||
| Sizes (MM) | 50, 65, 80, 100, 125, 150 |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
