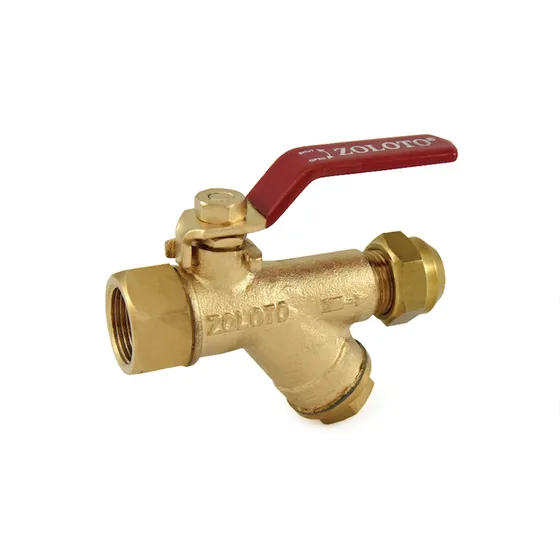

Dealer for ZolotoZoloto Bronze Ball Valve with Integral Strainer and Flare Nut (1085A)
Bronze ball valve with a built in SS 304 strainer, a BSP female inlet and a 5/8 inch BSP male outlet with flare nut, for refrigeration and HVAC connections from 15 mm to 25 mm.
- Built in SS 304 perforated sheet screen
- BSP female inlet and 5/8 inch BSP male outlet with flare nut
- Two piece design, quarter turn lever operation
- Stainless steel lever
- Maximum working temperature 220°C
Sizes: 15 mm, 20 mm, 25 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 1085A |
|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | |
| Size (mm) | 15 | 20 | 25 | |
| A ±1.5 | 87 | 114 | 126 | |
| B | 1/2″ | 3/4″ | 1″ | |
| C ~ | 34 | 36 | 44 | |
| D ~ | 82 | 82 | 82 | |
| Shell | 20 kg/cm²g (300 psig) | |||
| Seat | 13.50 kg/cm²g (192 psig) | |||
| Maximum Working Temperature | 220°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
