Sant Valves IS-21 Bronze Foot Valve, Screwed
Sizes: 15 mm to 100 mm
Two piece gun metal foot valve with a synthetic rubber O ring and integral seat, for water. Screwed ends, 15 mm to 100 mm.

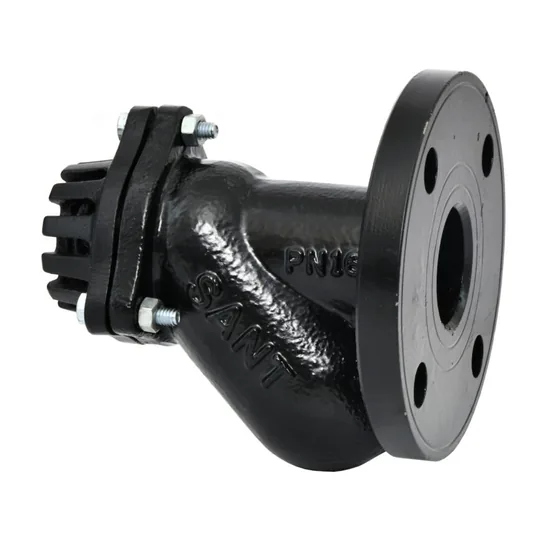

Authorised distributor for Sant ValvesSant Valves BFV Cast Iron Ball Foot Valve, Y Pattern, PN16, Flanged
Y pattern cast iron foot valve with a rubber coated MS ball, nitrile rubber seat ring and cast iron strainer, rated PN16. Flanged to IS 1538, 80 mm to 250 mm.
- Cast iron body to IS:210 FG 200
- MS rubber coated ball closing on a nitrile rubber seat ring
- Cast iron strainer to IS:210 FG 260
- Flanges as per IS:1538; body test 2.4 MPa, seat test 1.6 MPa
Sizes: 80 mm to 250 mm
Specifications
Specifications
| Specification | 80 mm | 100 mm | 150 mm | 200 mm | 250 mm |
|---|---|---|---|---|---|
| Nominal Size | 80 | 100 | 150 | 200 | 250 |
| B | 80 | 100 | 150 | 200 | 250 |
| ØFD | 200 | 220 | 285 | 340 | 395 |
| T | 21 | 22 | 23 | 24.5 | 26 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
More Sant Valves Foot Valves
Strainers and Foot Valves from other brands
Kartar Valves
Kartar Valves Single Door Foot Valve, Cast Iron, IS 4038 (K518)
Sizes: 25 mm to 300 mm
Swing type foot valve with a single door and rubber seat, flanged ends drilled to IS 1538, made to IS 4038; the product list gives K518 from 50 mm to 150 mm. Kartar's website lists the range in grey cast iron or ductile iron, swing or lift type, with sizes from 15 mm to 300 mm across its versions.
Kartar Valves
Kartar Valves Double Door Foot Valve, Cast Iron, IS 4038 (K519)
Swing type foot valve with a double door and rubber seat, flanged ends drilled to IS 1538, made to IS 4038, from 200 mm to 400 mm (350 mm and 400 mm in development).
Zoloto
Zoloto Cast Iron Y-Type Strainer, PN 10, Flanged (1084)
Sizes: 40 mm to 350 mm
Cast iron Y-type strainer rated PN 10, with an SS 304 perforated screen and flanges to BS 10 Table F, for lines from 40 mm to 350 mm.
Zoloto
Zoloto Cast Iron Y-Type Strainer, PN 16, Flanged (1084A)
Sizes: 40 mm to 250 mm
Higher pressure PN 16 version of Zoloto's cast iron Y-type strainer, rated 16 kg/cm²g, with an SS 304 screen, from 40 mm to 250 mm.
