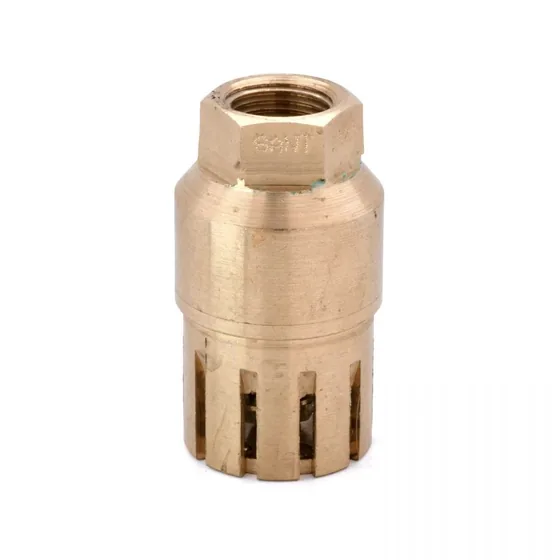

Authorised distributor for Sant ValvesSant Valves IS-21 Bronze Foot Valve, Screwed
Two piece gun metal foot valve with a synthetic rubber O ring and integral seat, for water. Screwed ends, 15 mm to 100 mm.
- Gun metal body to IS:318 Gr.LTB2
- Two piece design with synthetic rubber O ring
- Integral seat
- Female threads to IS-554 parallel, test pressure 300 psig
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| H (Approx.) | 72 | 72 | 78 | 93 | 98 | 107 | 112 | 127 | 141 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
