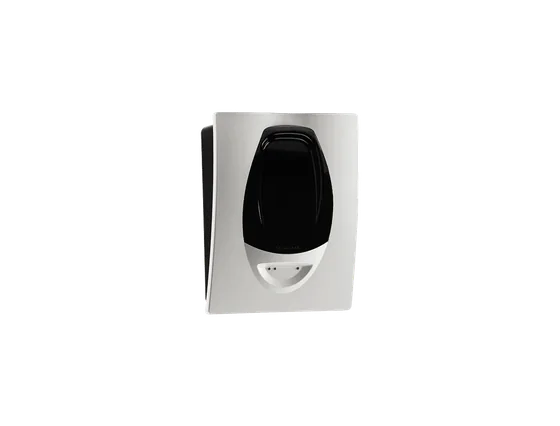

System Sensor BEAM1224S 4-Wire Beam Smoke Detector with Integral Sensitivity Test
The BEAM1224 with an integral sensitivity test: a test filter on a servo motor inside the optics, which System Sensor says helps meet the annual maintenance and test requirements of NFPA 72.
- Integral sensitivity test feature
- Protection range 5 to 100 m with an 8 inch reflector
- Six user-selectable sensitivity levels, including 2 Acclimate settings
- Digital display and optical sight for alignment
- 15 to 32 VDC; not for use with 12V power sources
- Operating temperature -30 to 55°C, optional heater kits
Specifications
Specifications
| Specification | BEAM1224S |
|---|---|
| Protection Range | 16 ft. to 328 ft. (5m to 100m) |
| Adjustment Angle | +/, 10 Degrees horizontal & vertical | (The optics move independent of the unit) |
| Sensitivity Levels | Level 1 to 25% | Level 2 to 30% | Level 3 to 40% | Level 4 to 50% | Acclimate Level 1 to 30 to 50% | Acclimate Level 2 to 40 to 50% |
| Fault Condition (Trouble) | 96% or more obscuration blockage | In alignment mode | Improper initial alignment | Self-compensation limit reached |
| Alignment Aid | Optical gunsight | Integral signal strength indication | 2-digit display |
| Alarm Indicator | Local red LED and remote alarm |
| Trouble Indicator | Local yellow LED and remote trouble |
| Normal Indicator | Local flashing green LED |
| Test/Reset Features | Integral Sensitivity Test Filter (BEAM1224S only) | Sensitivity filter (Incremental scale on reflector) | Local alarm test switch | Local alarm reset switch | Remote test and reset switch (Compatible with RTS451 | /RTS151 and RTS451KEY /RTS151KEY test station) |
| Smoke Detector Spacing | On smooth ceilings, 30 to 60 feet between | projected beams and not more than one-half | that spacing between a projected beam and a | sidewall. Other spacing may be used depending | on ceiling height, airflow characteristics, and | response requirements. See NFPA 72. |
| Temperature | -22°F to 131°F (-30°C to 55°C) |
| Humidity | 10 to 93% RH Noncondensing |
| Voltage | 10.2 to 32 VDC (BEAM1224) | 15 to 32 VDC (BEAM1224S) | BEAM1224S should not be used | with 12V power sources |
| Avg. Standby Current (24VDC) | 17mA Max |
| Avg. Current During Testing | 500mA Max |
| Avg. Alarm Current (24VDC) | 38.5mA Max |
| Avg. Fault Current (24VDC) | 8.5mA Max |
| Avg. Alignment Mode Current | (24VDC) | 28mA Max |
| Detector Dimensions | 10˝ H × 7.5˝ W × 3.3˝ D | (254mm H × 191mm W × 84mm D) |
| Reflector Dimensions (16′ to 230′) | 7.9˝ × 9.1˝ (200 × 230mm) |
| Reflector Dimensions | (beyond 230′) | 15.7˝ × 18.1˝ (400 × 460mm) |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
