System Sensor InnovairFlex D2E Conventional Duct Smoke Detector
A conventional 2-wire photoelectric duct smoke detector with integrated low-flow technology and modular construction, fitted with a Series 300 conventional detector base.
Dealer for System Sensor

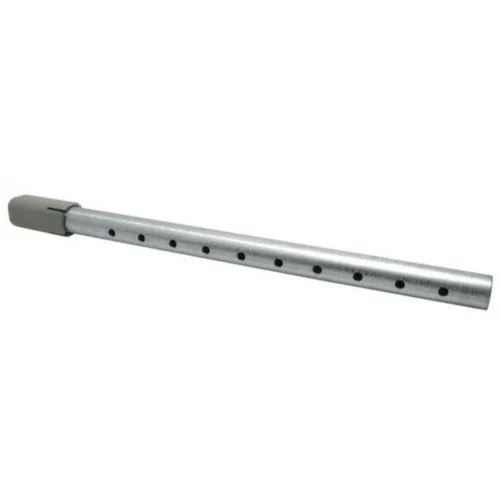

System Sensor DST Sampling Tubes for Duct Smoke Detectors
Steel sampling tubes with holes drilled along their length that carry duct air to the detector. Each size suits a range of duct widths, and the tube is bought separately from the detector.
- Compatible with conventional and addressable duct detectors
- DST1 for ducts up to 0.3 m, DST1.5 for 0.3 to 0.6 m
- DST3 for 0.6 to 1.2 m, DST5 for 1.2 to 2.4 m, DST10 for 2.4 to 3.7 m
- Should extend at least 5/8 of the way across the duct
- Installed with the air inlet holes facing into the airflow
Specifications
System Sensor has not published a specification table for this model. Ask us for the data sheet.
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
