System Sensor InnovairFlex D2E Conventional Duct Smoke Detector
A conventional 2-wire photoelectric duct smoke detector with integrated low-flow technology and modular construction, fitted with a Series 300 conventional detector base.
Dealer for System Sensor

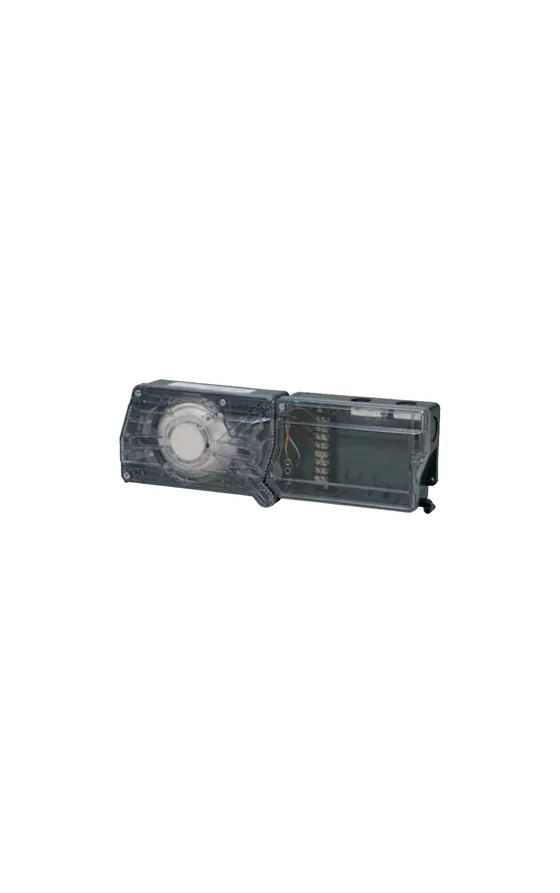

System Sensor InnovairFlex D2 2-Wire Photoelectric Duct Smoke Detector
A 2-wire photoelectric duct smoke detector with a pivoting housing that fits square or rectangular footprints on round or rectangular ductwork.
- Air velocity 100 to 4,000 ft/min (0.5 to 20.32 m/sec)
- Power supply 8.5 to 35 VDC
- Plug-in sensor with integrated low-flow technology
- Sampling tube installs from the front or back without tools
- Cover tamper feature and a ¾ inch conduit knockout for extra wiring space
- Operating temperature -20 to 70°C, weight 0.82 kg
Specifications
Specifications
| Specification | D2 |
|---|---|
| Weight: | 1.8 lb (0.82 kg) |
| Operating Temperature Range: | -4°F to 158°F (-20°C to 70°C) |
| Storage Temperature Range: | -22°F to 158°F (-30°C to 70°C) |
| Operating Humidity Range: | 0% to 95% relative humidity non-condensing |
| Air Duct Velocity: | 100 to 4000 ft/min (0.5 to 20.32 m/sec) |
| Power supply voltage: | 8.5-35 VDC |
| Input capacitance: | 0.1 µF max. |
| Reset voltage: | 2.5 VDC min. |
| Reset time: (with RTS451) | 0.03 to 0.3 sec. |
| Reset time: (by power down) | 0.3 sec. max. |
| Power up time: | 35 sec. max. |
| Alarm response time: | 15 sec. |
| Sensitivity Test: | See detector label |
| Peak standby current: | 120µA |
| Max. standby current: | 60 µA (average) |
| Max. alarm current: | 130 mA |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
