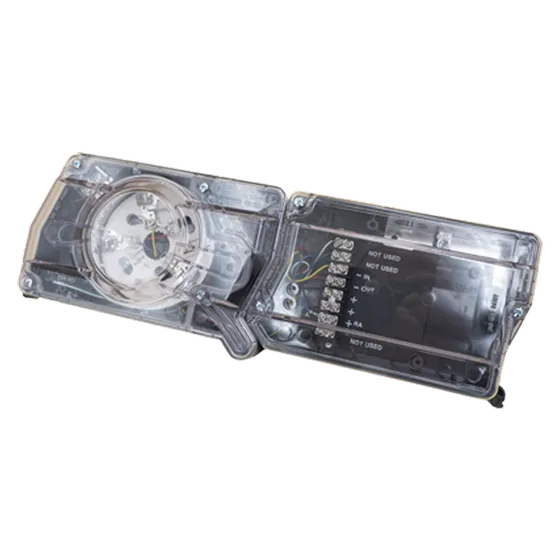

System Sensor InnovairFlex D2E Conventional Duct Smoke Detector
A conventional 2-wire photoelectric duct smoke detector with integrated low-flow technology and modular construction, fitted with a Series 300 conventional detector base.
- Power supply 8.5 to 35 VDC
- Operating temperature -20 to 70°C, humidity 0 to 95% non-condensing
- Built-in short circuit protection against wiring errors
- Cover tamper feature signals a trouble condition if the sensor cover is removed or badly fitted
- Transparent cover to see the detector head LED
- Mounts on round or rectangular ducts from 0.3 m to 3.7 m wide, weight 0.82 kg
Specifications
Specifications
| Specification | D2E |
|---|---|
| Power supply voltage: | 8.5-35 VDC |
| Input capacitance: | 0.1 µF max. |
| Reset voltage: | 2.5 VDC min. |
| Reset time: (with RTS451) | 0.03 to 0.3 sec. |
| Reset time: (by power down) | 0.3 sec. max. |
| Power up time: | 35 sec. max. |
| Alarm response time: | 15 sec. |
| Sensitivity Test: | See detector label |
| Size: (Rectangular) | 37 cm Length; 12.7 cm Width; 6.36 cm Depth | (Square) 19.7 cm Length; 22.9 cm Width; 6.35 cm Depth |
| Weight: | 0.82 kg |
| Operating Temperature Range: | -20°C to 70°C |
| Storage Temperature Range: | -30° to 70°C |
| Operating Humidity Range: | 0% to 95% relative humidity non-condensing |
| Air Duct Velocity: | 1.5 to 20.3 m/sec |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
