System Sensor InnovairFlex D2E Conventional Duct Smoke Detector
A conventional 2-wire photoelectric duct smoke detector with integrated low-flow technology and modular construction, fitted with a Series 300 conventional detector base.
Dealer for System Sensor

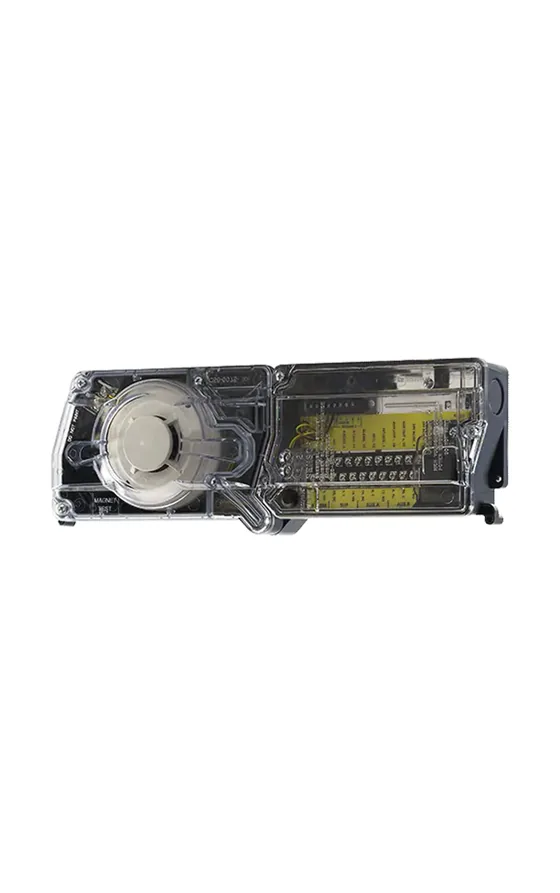

System Sensor InnovairFlex D4120 4-Wire Duct Smoke Detector, 120 VAC
A 4-wire photoelectric duct smoke detector for 120 VAC, with a pivoting housing, a Test/Reset button and a patented interconnect feature for multi-fan shutdown.
- Air flow speeds from 100 to 4,000 feet per minute
- Patented interconnect feature for multi-fan shutdown
- One easy-access Test/Reset button and improved LED status
- Field selectable settings and high-contrast terminal markings
- Built-in short circuit protection against wiring errors
- Operating temperature -20 to 70°C, weight 1.14 kg
Specifications
Specifications
| Specification | D4120 |
|---|---|
| Weight: | 2.5 lbs (1.14 kg) |
| Operating Temperature Range: | D4120 & D4S:, 4° to 158°F (-20° to 70°C); D4P120:, 40° to 158°F (-40° to 70°C) |
| Storage Temperature Range: | D4120 & D4S:, 22° to 158°F (-30° to 70°C); D4P120:, 40° to 158°F (-40° to 70°C) |
| Operating Humidity Range: | 0% to 95% relative humidity non-condensing |
| Air Duct Velocity: | 100 to 4000 ft/min (0.5 to 20.32 m/sec) |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
