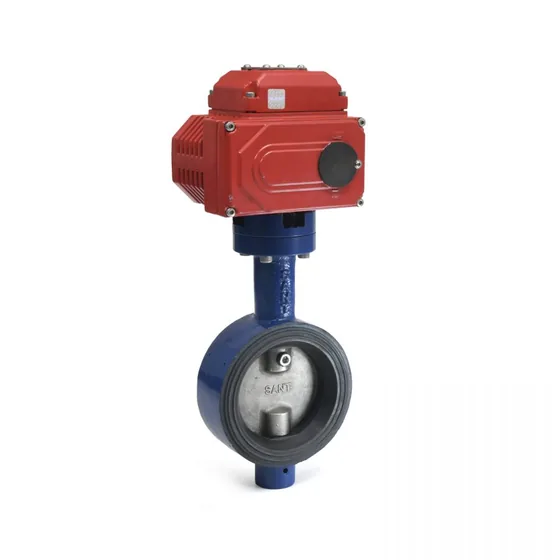

Authorised distributor for Sant ValvesSant Valves CIBFE Cast Iron Butterfly Valve with Electric Actuator
Cast iron butterfly valve supplied with an electric actuator for motorised opening and closing. PN 10/PN 16, 40 mm to 300 mm.
- Cast iron body to IS:210 Gr FG200, AISI-410 stem
- EPDM lining, SS CF 8 disc
- Electric actuator for remote or automatic operation
- Fits between flanges to ASME B 16.1 or Class-125
Sizes: 40 mm to 300 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|---|
| Size | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| F±2 | 33 | 43 | 46 | 46 | 52 | 56 | 56 | 60 | 68 | 78 |
| D | 82 | 95 | 106 | 124 | 150 | 172 | 207 | 260 | 315 | 375 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
