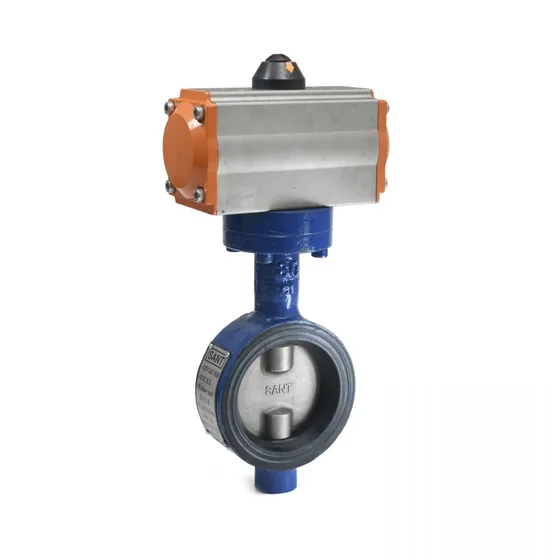

Authorised distributor for Sant ValvesSant Valves CIBFP Cast Iron Butterfly Valve with Pneumatic Actuator
Wafer type cast iron butterfly valve supplied with a pneumatic actuator for air operated opening and closing. PN 10/PN 16, 40 mm to 200 mm.
- Cast iron body to IS:210 Gr FG200, AISI-410 stem
- Nitrile or EPDM lining, stainless steel CF8 disc
- Pneumatic actuator for automatic operation
- Fits between flanges to BS 10 Table F/D/E or ASME B 16.1 Class-125
Sizes: 40 mm to 200 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm |
|---|---|---|---|---|---|---|---|---|
| Size | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| F±2 | 33 | 43 | 46 | 46 | 52 | 56 | 56 | 60 |
| D | 82 | 95 | 106 | 124 | 150 | 174 | 210 | 260 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
