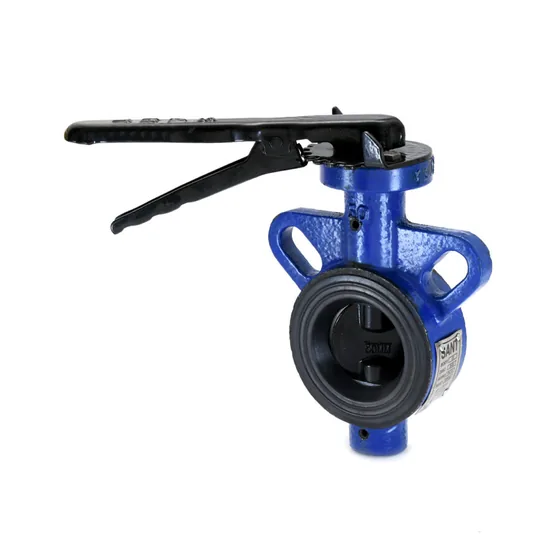

Authorised distributor for Sant ValvesSant Valves CR-21A Cast Iron Butterfly Valve, IS 13095, SG Iron Disc, Short Pattern
ISI marked short pattern wafer butterfly valve to IS 13095, with a cast iron body and SG iron disc. PN 10/PN 16, 40 mm to 150 mm, for water.
- IS 13095, ISI marked
- Cast iron body to IS:210 Gr.FG200, SS AISI-410 trim
- Nitrile or EPDM lining, SG iron disc
- Fits between flanges to BS 10 Table D/E or ANSI B 16.1 CI-125
Standards and approvals: IS:13095, ISI Marked
Sizes: 40 mm to 150 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm |
|---|---|---|---|---|---|---|---|
| Nominal Size | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
| Nominal Size (Inches) | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 5 | 6 |
| F | 33±2 | 43±2 | 46±2 | 46±2 | 52±2 | 56±2 | 56±2 |
| ∅D | 82 | 95 | 106 | 124 | 150 | 173 | 210 |
| LL (Approx.) | 175 | 175 | 175 | 260 | 260 | 260 | 260 |
| H (Approx.) | 132 | 132 | 145 | 170 | 189 | 207 | 232 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
