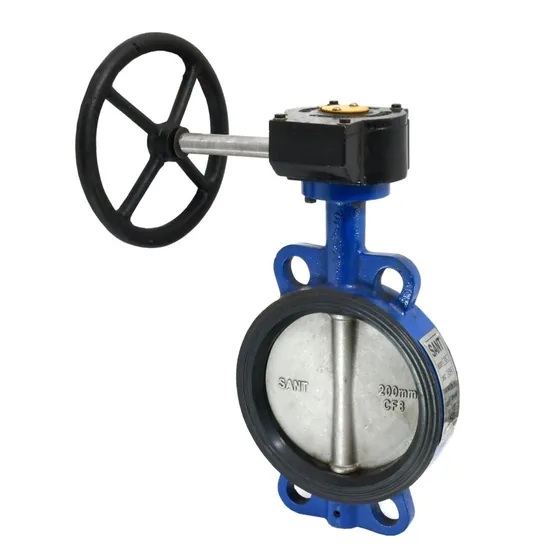

Authorised distributor for Sant ValvesSant Valves CR-22B Cast Iron Butterfly Valve, IS 13095, SS Disc, Medium Pattern
ISI marked medium pattern wafer butterfly valve to IS 13095, with a cast iron body and SS CF8 disc. PN 10/PN 16, 200 mm to 600 mm, for water.
- IS 13095, ISI marked
- Cast iron body to IS:210 Gr.FG200, SS AISI-410 trim
- Nitrile or EPDM lining, SS CF8 disc
- Fits between flanges to BS 10 Table D/E or ANSI B 16.1 Class 125
Standards and approvals: IS:13095, ISI Marked
Sizes: 200 mm to 600 mm
Specifications
Specifications
| Specification | 200 mm | 250 mm | 300 mm | 350 mm | 400 mm | 450 mm | 500 mm | 600 mm |
|---|---|---|---|---|---|---|---|---|
| Nominal Size | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| Nominal Size (Inches) | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| F | 60±2 | 68±2 | 78±3 | 92±3 | 102±3 | 114±3 | 127±3 | 154±3 |
| ∅D | 260 | 315 | 375 | 418 | 470 | 525 | 575 | 690 |
| H (Approx.) | 335 | 375 | 400 | 475 | 505 | 580 | 625 | 700 |
| ∅W (Approx.) | 240 | 240 | 285 | 355 | 355 | 450 | 625 | 625 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
