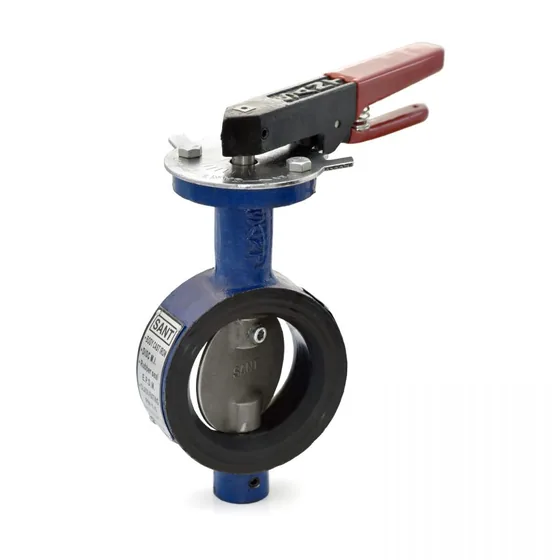

Authorised distributor for Sant ValvesSant Valves CR-27A Cast Iron Butterfly Valve, PN 20
Wafer type cast iron butterfly valve with a stainless steel CF8 disc, rated PN 20. Sizes 40 mm to 300 mm, for water and oil.
- Cast iron body to IS:210 Gr.FG200, SS AISI-410 trim
- Nitrile or EPDM lining, SS CF8 disc
- Fits between flanges to BS 10 Table D/E or ASME B 16.1 Class 125
- Body test 3.0 MPa, seat test 2.2 MPa
Sizes: 40 mm to 300 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Nominal Size (Inches) | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| F | 33±2 | 43±2 | 46±2 | 46±2 | 52±2 | 56±2 | 56±2 | 60±2 | 68±2 | 78±3 |
| ØD | 85 | 95 | 110 | 125 | 153 | 179 | 209 | 260 | 315 | 370 |
| H (Approx.) | 145 | 150 | 165 | 175 | 200 | 210 | 245 | - | - | - |
| H1 (Approx.) | - | - | - | - | - | - | - | 335 | 375 | 480 |
| LL (Approx.) | 175 | 175 | 175 | 260 | 260 | 260 | 260 | - | - | - |
| ∅W (Approx.) | - | - | - | - | - | - | - | 240 | 240 | 285 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
