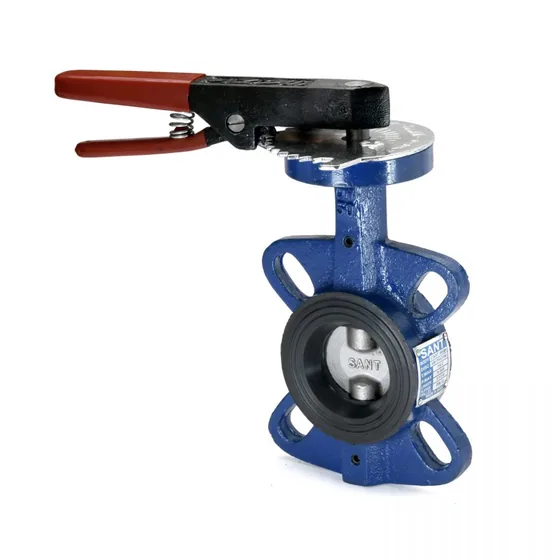

Authorised distributor for Sant ValvesSant Valves CR-28C Cast Iron Butterfly Valve, CF8M Disc, PN 16
Short pattern wafer butterfly valve with a cast iron body, EPDM lining and CF8M stainless steel disc, rated PN 16. The widest size range in the family, 40 mm to 600 mm, for water and oil.
- Cast iron body to IS:210 Gr.FG200, SS AISI-304 stem
- EPDM lining, CF8M disc
- Fits between flanges to BS 10 Table D/E or ANSI B 16.1 Class 125
- Body test 2.4 MPa (348 psig), seat test 1.6 MPa (232 psig)
Sizes: 40 mm to 600 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm | 350 mm | 400 mm | 450 mm | 500 mm | 600 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| Nominal Size (Inches) | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| F | 33±2 | 43±2 | 46±2 | 46±2 | 52±2 | 56±2 | 56±2 | 60±2 | 68±2 | 78±3 | 92±3 | 102±3 | 114±3 | 127±3 | 154±4 |
| ØD | 85 | 95 | 110 | 124 | 153 | 174 | 209 | 260 | 315 | 370 | 418 | 470 | 525 | 575 | 693 |
| H (Approx.) | 152 | 171 | 182 | 192 | 213 | 234 | 248 | 335 | 375 | 404 | 475 | 505 | 580 | 625 | 700 |
| LL (Approx.) | 200 | 200 | 200 | 200 | 260 | 260 | 260 | - | - | - | - | - | - | - | - |
| ∅W (Approx.) | - | - | - | - | - | - | - | 240 | 240 | 285 | 355 | 355 | 450 | 625 | 625 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
