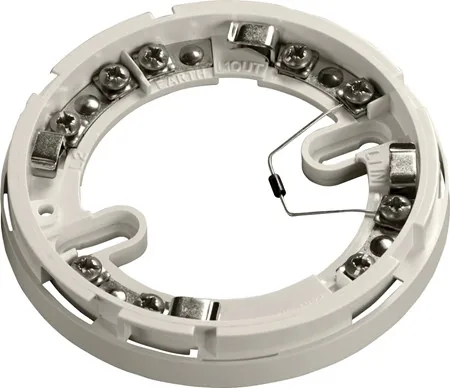

Authorised distributor for ApolloA Series 65 base for conventional systems that have manual call points and detector bases on the same circuit. A Schottky diode on the L1 IN and L1 OUT terminals keeps the circuit working if a detector is removed without permission; it is used with compatible control equipment.
| Specification | 45681-201APO |
|---|---|
| Warranty | 10 year |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
A universal detector base that fits all Apollo detectors in the Soteria, Discovery and XP95 ranges. It supports isolated and non-isolated devices and has a wide interior for easy access to cables and terminals.
A white flame-retardant polycarbonate mounting box for flush fitting Soteria Dimension detectors into a ceiling opening. It is held in place by self-aligning fixing tabs.
A low insertion force detector base with stainless steel contacts for quick installation, suited to the XP95 and Discovery detector ranges. It is available in white and in black.
An XPERT 7 base with a built-in isolator that senses short circuit faults on Discovery loops and spurs and keeps the disruption they cause to a minimum.
A dedicated white polycarbonate base designed to accept only the Apollo Isolator 55000-720.
An XPERT 7 base for intrinsically safe systems that accepts only I.S. products, so a standard detector cannot be fitted by mistake.
A 4 inch standard European flangeless mounting base for a plain detector position, UL/ULC listed.
A sounder base that takes the same address as its detector but uses its own device type on the loop, and recognises the System Sensor synchronisation protocol.
The plug-in base for Morley Advanced intelligent sensor ranges, in the ivory version. The standard MI-B501AP is white and the BK version is black.
The standard base for System Sensor 500, 200, 200+ and 200 Advanced intelligent sensors, with a tamper-resistant option and a break-off address tag.
A two-wire heated base for System Sensor 200 analogue addressable detectors, used where frost or condensation could otherwise cause false alarms.
Mounting base for all Intelli-Sense detectors, 110 mm across and 16 mm deep, with device locking and remote indicator connections.
