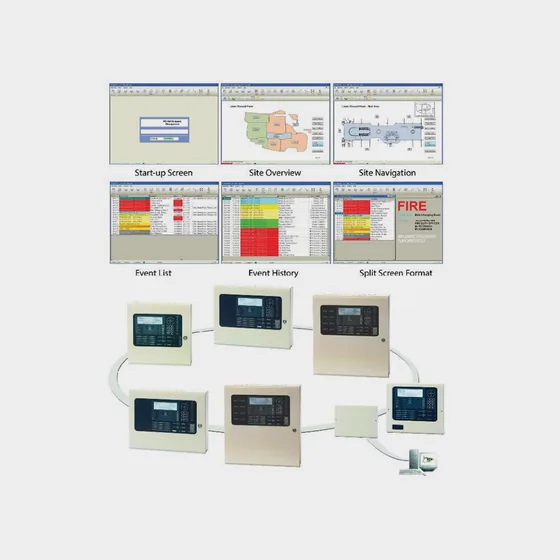

Authorised distributor for CeasefirePremium version of the graphic control software for up to 15 or 200 network nodes, adding groups, slaves, event printer, service and history modes. SMS and email alerts can be added with a hardware component and licence upgrade.
| Specification | TI-002338 | TI-002340 |
|---|---|---|
| Type | Garphic Control Software | Garphic Control Software |
| Model | TI-002338 | TI-002340 |
| Processor | Intel Pentium i5 or higher (32 bit and 64 bit OS supported) | Intel Pentium i5 or higher (32 bit and 64 bit OS supported) |
| Recommended Operating Systems | Windows 7 or 10 Pro 32/64 bit | Windows 7 or 10 Pro 32/64 bit |
| Memory | Memory 4Gb RAM (Minimum Recommended) | Memory 4Gb RAM (Minimum Recommended) |
| Disk Space | 250Gb Hard Drive (Minimum Recommended) | 250Gb Hard Drive (Minimum Recommended) |
| Graphics | XGA Graphics Accelerator supporting a minimum 1024 x 768resolution | XGA Graphics Accelerator supporting a minimum 1024 x 768resolution |
| Sound Card | Minimum 17” and support a screen resolution of 1024 x 768 | Minimum 17” and support a screen resolution of 1024 x 768 |
| Monitor | Minimum 17” and support a screen resolution of 1024 x 768 | Minimum 17” and support a screen resolution of 1024 x 768 |
| USB Port | Required if using a USB port software dongle: Confirm at time order is placed for software | Required if using a USB port software dongle: Confirm at time order is placed for software |
| Printer | Optional | Optional |
| Serial Port | 1 x Serial port for communications with Graphics Interface. (Additional serial ports may be necessary if connectivity to other services are required) | 1 x Serial port for communications with Graphics Interface. (Additional serial ports may be necessary if connectivity to other services are required) |
| CD ROM Drive | Required for software installation | Required for software installation |
| Backup Device | Recommended | Recommended |
| Warranty | A PC with on-site warranty support is recommended | A PC with on-site warranty support is recommended |
| Options | Touch-Screen Monitor (Minimum Specification suggested): - 17” supporting a screen resolution of at least 1024 x 768 - Any resolution above 1024 x 768 can be supported however, Graphical bitmaps must be created in the appropriate format for the resolution selected. - If monitors are to be used in a Portrait manner a horizontal screen resolution of at least 950 pixels must be available. - 1 x Additional Serial / USB port for communications with Touch Screen Controller | Touch-Screen Monitor (Minimum Specification suggested): - 17” supporting a screen resolution of at least 1024 x 768 - Any resolution above 1024 x 768 can be supported however, Graphical bitmaps must be created in the appropriate format for the resolution selected. - If monitors are to be used in a Portrait manner a horizontal screen resolution of at least 950 pixels must be available. - 1 x Additional Serial / USB port for communications with Touch Screen Controller |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Conventional fire alarm panels in 2, 4, 8, 12, 16, 24 and 32 zone sizes, approved to EN 54-2 and 4. The 8 zone and larger panels can be networked, up to 8 control panels, and work with repeater or remote display units.
Addressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.
Addressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.
Conventional control panel for gas suppression, with 3 detection zones and 1 extinguishing zone that can drive solenoid or Metron actuators. A large LCD countdown timer shows the time to release.
Repeater panel that shows fire and fault status for 12 zones away from the main panel, with controls enabled by key switch or code entry. It has its own 1.25 A power supply with battery backup.
Remote display for conventional fire alarm systems with a 4 x 40 character backlit LCD and full system control. It runs from a 24 V DC supply and has fire and fault outputs.
A remote indicator wired to a fire detector that is concealed or hard to see, so the source of an alarm can be found quickly. It works with conventional or addressable detectors.
A gateway that links fire alarm panels, the cloud and peripherals, reading the panel's inventory data and passing it to licensed cloud software for remote monitoring and management.
Connects Notifier panels, NCA and NCA-2 annunciators and the DVC to High-Speed NOTI-FIRE-NET over twisted-pair wire, with up to 2 node addresses.
Connects Notifier panels, annunciators and the DVC to High-Speed NOTI-FIRE-NET over multi-mode fibre-optic cable.
The card that connects DXc panels into a network. One is fitted to each panel, on the four studs at the left-hand side of the control panel.
An RS232 kit for DXc panels that connects a serial device, such as a BMS or AMX fire graphics software, through a third party protocol.
