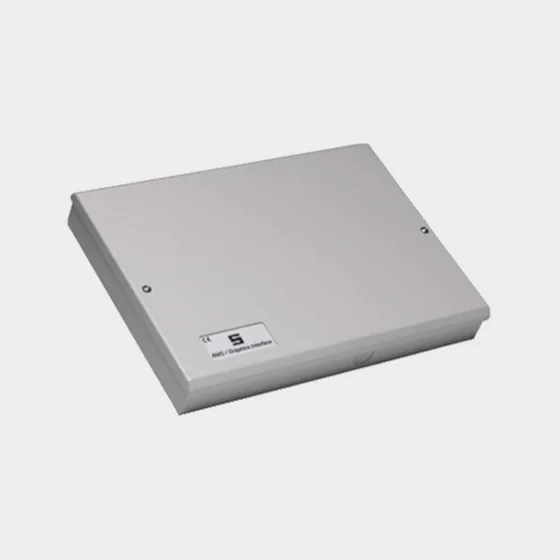

Authorised distributor for CeasefireGateway that gives remote access to an Intelli-Sense-Net fire network through a standard web browser, with password protection, multiple user permissions and email event notification. It comes for standard or fault tolerant networks, as a bare PCB or in an IP30 enclosure.
| Specification | TI-002332 | TI-002332-BX | TI-002333 | TI-002333-BX |
|---|---|---|---|---|
| Type | Intelli-Sense Panel Peripheral | Intelli-Sense Panel Peripheral | Intelli-Sense Panel Peripheral | Intelli-Sense Panel Peripheral |
| Model | TI-002332 | TI-002332-BX | TI-002333 | TI-002333-BX |
| Supply Voltage Input | 18-28V DC | 18-28V DC | 18-28V DC | 18-28V DC |
| Supply Current | 48mA(/FT: 86mA) at 24V DC | 48mA(/FT: 86mA) at 24V DC | 48mA(/FT: 86mA) at 24V DC | 48mA(/FT: 86mA) at 24V DC |
| Enclosure H x W x D mm | IP30: 218x 300x45 | IP30: 218x 300x45 | IP30: 218x 300x45 | IP30: 218x 300x45 |
| Weight | 2Kg | 2Kg | 2Kg | 2Kg |
| Knockouts | 4 top, 4 bottom, 4 bottom rear | 4 top, 4 bottom, 4 bottom rear | 4 top, 4 bottom, 4 bottom rear | 4 top, 4 bottom, 4 bottom rear |
| Temperature range | -5°C to 50°C / 95% humidity (non-condensing) | -5°C to 50°C / 95% humidity (non-condensing) | -5°C to 50°C / 95% humidity (non-condensing) | -5°C to 50°C / 95% humidity (non-condensing) |
| Serial Interface | Isolated RS 232 interface | Isolated RS 232 interface | Isolated RS 232 interface | Isolated RS 232 interface |
| Fault Input | Monitor input for power supply fault output | Monitor input for power supply fault output | Monitor input for power supply fault output | Monitor input for power supply fault output |
| Indications | On-board LED indicators for heartbeat, network transmit/receive, RS232 transmit/receive, LAN Activity, LAN Connectivity, LAN Run7 | On-board LED indicators for heartbeat, network transmit/receive, RS232 transmit/receive, LAN Activity, LAN Connectivity, LAN Run7 | On-board LED indicators for heartbeat, network transmit/receive, RS232 transmit/receive, LAN Activity, LAN Connectivity, LAN Run7 | On-board LED indicators for heartbeat, network transmit/receive, RS232 transmit/receive, LAN Activity, LAN Connectivity, LAN Run7 |
| Ethernet Interface | 10Base-T, RJ45 | 10Base-T, RJ45 | 10Base-T, RJ45 | 10Base-T, RJ45 |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
