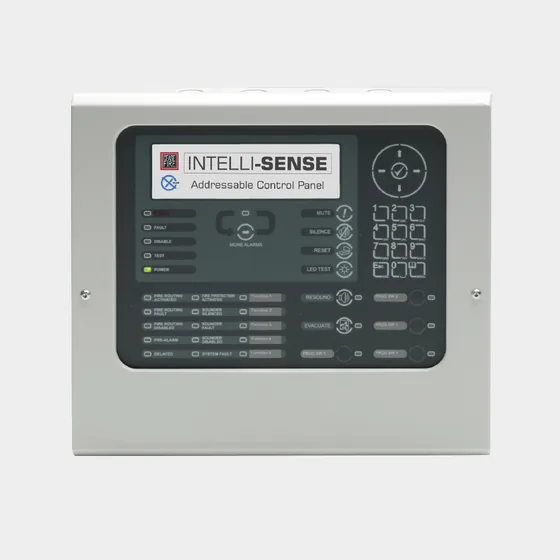

Authorised distributor for CeasefireLarger networked terminal with system keys for Mute, Reset, Silence and Resound, programmable push buttons and 18 amber fault and system LEDs. It displays up to 2000 fire zones from across the network.
| Specification | TI-002323-ST | TI-002323-FT |
|---|---|---|
| Type | Networkable | Networkable |
| Model | TI-002323-ST | TI-002323-FT |
| Display | White backlit 240x64 graphical LCD | White backlit 240x64 graphical LCD |
| LED Indicators | 2 red (1 x Fire, 1 x Alarm), 1 green (Power) & 18 amber (Fault & System) | 2 red (1 x Fire, 1 x Alarm), 1 green (Power) & 18 amber (Fault & System) |
| Keypads | Alpha numeric keypad, navigation keys & on-board buzzer mute facility | Alpha numeric keypad, navigation keys & on-board buzzer mute facility |
| Controls | System keys for Mute, Reset, Silence, Resound | System keys for Mute, Reset, Silence, Resound |
| Key-Switch Input | Optional level 2 access enable key switch | Optional level 2 access enable key switch |
| Power Supply Input | 24 VDC, 115mA (/FT: 150mA) operating range 15-30V | 24 VDC, 115mA (/FT: 150mA) operating range 15-30V |
| External Supply Monitoring | Monitored external fault input | Monitored external fault input |
| Number of Fire Zones | 2000 | 2000 |
| USB/Serial Ports | 1 x USB & 1 x RS232 | 1 x USB & 1 x RS232 |
| Programming | Via on-board keypad or PC running Windows tools | Via on-board keypad or PC running Windows tools |
| Enclosure | Steel IP30 | Steel IP30 |
| Cable Entry | 20mm knock-outs.4 x top and 4 x rear | 20mm knock-outs.4 x top and 4 x rear |
| Colour | RAL7035 | RAL7035 |
| Metal work Options | Semi flushing bezel, special finishes including Stainless & Chrome | Semi flushing bezel, special finishes including Stainless & Chrome |
| Networking | On-board Standard network card (TI-002325). | On-board Fault-Tolerant network card (TI-002324). |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
