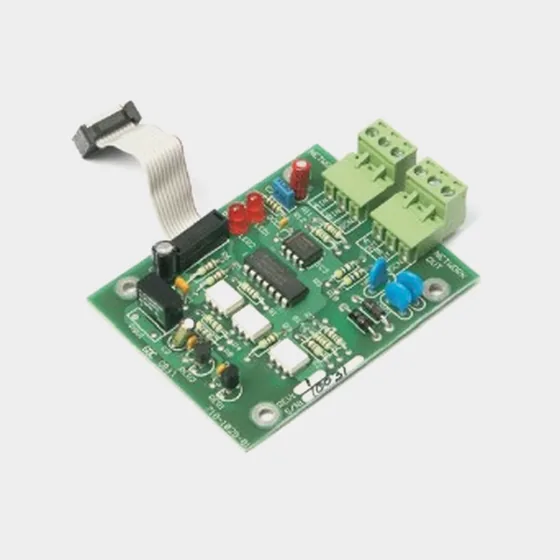

Authorised distributor for CeasefirePlug-in cards that link Intelli-Sense panels into one network sharing up to 1000 zones. The fault tolerant card (TI-002324) supports a 200 panel network with up to 1.5 km between panels, and the standard card (TI-002325) a 32 panel network with up to 1.5 km of total cable.
| Specification | TI-002325 | TI-002324 |
|---|---|---|
| Type | Intelli-Sense Panel Peripheral | Intelli-Sense Panel Peripheral |
| Model | TI-002325 | TI-002324 |
| Network Connections | White backlit 240x64 graphical LCD | White backlit 240x64 graphical LCD |
| On-board Indication | IN: A/B SCN(Screen) OUT: A/B SCN (Screen) | IN: A/B SCN(Screen) OUT: A/B SCN (Screen) |
| Supply Current | TI-002325 Standard Network card: 20mA (All power is taken directly from the panel motherboard) | TI-002324 Fault Tolerant Network Card: 61mA (All power is taken directly from the panel motherboard) |
| Temperature range and Humidity | -5°C to 40C 95% non-condensing (maximum) | -5°C to 40C 95% non-condensing (maximum) |
| Dimensions(HxWxD) | 85mm x 65mm x 20mm (Mounting pillars are provided on the panel chassis to mount this card) | 85mm x 65mm x 20mm (Mounting pillars are provided on the panel chassis to mount this card) |
| Recommended Cable | 2 Core twisted-pair plus screen | 2 Core twisted-pair plus screen |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
