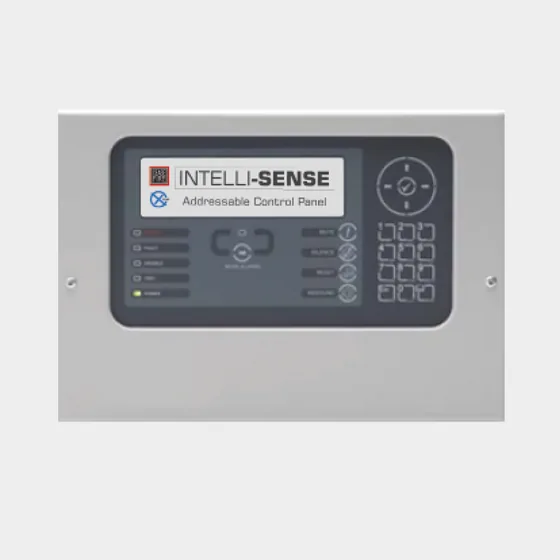

Authorised distributor for CeasefireCompact networked display terminal for viewing information from across an Intelli-Sense-NeT network, with a Mute key that silences the warning buzzers on other network panels.
| Specification | TI-002322-ST | TI-002322-FT |
|---|---|---|
| Type | Networkable | Networkable |
| Model | TI-002322-ST | TI-002322-FT |
| Display | White backlit 240x64 graphical LCD | White backlit 240x64 graphical LCD |
| LED Indicators | 1 red (1 x Fire, 1 x Alarm), 1 green (Power) & 3 amber (Fault & System) | 1 red (1 x Fire, 1 x Alarm), 1 green (Power) & 3 amber (Fault & System) |
| Keypads | Alpha numeric keypad, navigation keys & onboard buzzer mute facility | Alpha numeric keypad, navigation keys & onboard buzzer mute facility |
| Controls | System keys for Mute | System keys for Mute |
| Key-Switch Input | Optional level 2 access enable key switch | Optional level 2 access enable key switch |
| Power Supply Input | 24 VDC, 115mA (/FT: 150mA) operating range 15-30V | 24 VDC, 115mA (/FT: 150mA) operating range 15-30V |
| External Supply Monitoring | Monitored external fault input | Monitored external fault input |
| Number of Fire Zones | 22 | 22 |
| USB/Serial Ports | 1xUSB | 1xUSB |
| Programming | Via on-board keypad or PC running Windows tools | Via on-board keypad or PC running Windows tools |
| Enclosure | Steel IP30 | Steel IP30 |
| Cable Entry | 20mm knock-outs. 4 x top and 4 x rear | 20mm knock-outs. 4 x top and 4 x rear |
| Colour | RAL7035 | RAL7035 |
| Metal work Options | Semi flushing bezel, special finishes including Stainless & Chrome | Semi flushing bezel, special finishes including Stainless & Chrome |
| Networking | On-board Standard network card (TI-002325). | On-board Fault-Tolerant network card (TI-002324). |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
