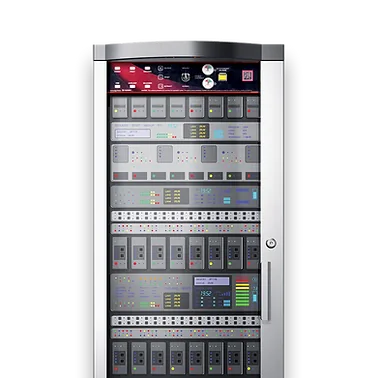

Authorised distributor for CeasefireModular HFC 227ea suppression unit built to fit inside a server rack, with detectors, controls, agent cylinder and alarm packed together. The optional IP module lets you check system health on a computer or phone and receive email alerts.
Sizes: 1.5 Zp Cubic Meter, 3.0 Zp Cubic Meter
| Specification | 1.5 Zp Cubic Meter | ASP- 1.5 Za Cubic Meter | 3.0 Zp Cubic Meter | ASP- 3.0 Za Cubic Meter |
|---|---|---|---|---|
| SQRS | 1.5 | ASP-1.5 | 3 Cubic | ASP-3.0 |
| Meter-Input Voltage | 110/230VAC 50/60Hz via single fused IEC socket | 110/230VAC 50/60Hz via single fused IEC socket | 110/230VAC 50/60Hz via single fused IEC socket | 10/230VAC 50/60Hz via single fused IEC socket |
| Output Voltage | As input voltage via 1 x 8A IEC socket can be used powers and controls a rack fan tray | As input voltage via 1 x 8A IEC socket can be used powers and controls a rack fan tray | As input voltage via 1 x 8A IEC socket can be used powers and controls a rack fan tray | As input voltage via 1 x 8A IEC socket can be used powers and controls a rack fan tray |
| Output Data Port | Extinguishant delay time 0,4,32,64,128 seconds | Extinguishant delay time 0,4,32,64,128 seconds | Extinguishant delay time 0,4,32,64,128 seconds | Extinguishant delay time 0,4,32,64,128 seconds |
| Remote Output | Extinguishant output | Extinguishant output | Extinguishant output | Extinguishant output |
| Remote Inputs | Extinguishant Release, Hold off Release | Extinguishant Release, Hold off Release | Extinguishant Release, Hold off Release | Extinguishant Release, Hold off Release |
| Backup Power | 2 x 1.2 AH SLAB: 24hrs | 2 x 1.2 AH SLAB: 24hrs | 2 x 1.2 AH SLAB: 24hrs | 2 x 1.2 AH SLAB: 24hrs |
| Operating Humidity | 0 to 95% (non-condensing) | 0 to 95% (non-condensing) | 0 to 95% (non-condensing) | 0 to 95% (non-condensing) |
| Power Supply Rating | 750mA max @ 28v dc (350mA cont) | 750mA max @ 28v dc (350mA cont) | 750mA max @ 28v dc (350mA cont) | 750mA max @ 28v dc (350mA cont) |
| Extinguishant Type | HFC227ea | HFC227ea | HFC227ea | HFC227ea |
| Fire Detector Types | Point type - 2 x Conventional Photoelectric Smoke Detector | High sensitivity (aspirated) - HSSD | Point type 2 x conventional Photoelectric Smoke Detector | High sensitivity (aspirated) - HSSD |
| Transportation Dimensions | 190mm x 570mm x 590mm | 190mm x 570mm x 590mm | 190mm x 570mm x 590mm | 190mm x 570mm x 590mm |
| No. of Cylinders | 1 Cylinder | 1 Cylinder | 2 Cylinder | 2 Cylinder |
| Type | Seamless | Seamless | Seamless | Seamless |
| Gas Volume | 1.1 kg for 1.5 Cubic Metre (1 cylinder) | 1.1 kg for 1.5 Cubic Metre (1 cylinder) | 2.2 kg for 3 Cubic metres (2 cylinders) | 2.2 kg for 3 Cubic metres (2 cylinders) |
| Cylinder Activation | Metron Actuator | Metron Actuator | Metron Actuator | Metron Actuator |
| Gross Weight | Min 6 kg, max weight 13 kg, depending on type | Min 6 kg, max weight 13 kg, depending on type | Min 6 kg, max weight 13 kg, depending on type | Min 6 kg, max weight 13 kg, depending on type |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
Pre-engineered, retrofittable suppression system built from ceiling mounted agent containers in 2, 5, 10 and 15 kg, linked to detectors and a control panel. It comes with Fluoroketone (FK) clean agent or ABC powder MAP 90, and all units fire together for total flooding.
A small self actuating Fluoroketone (FK) unit for enclosed micro environments, released mechanically by a heat sensitive glass bulb with no power supply. The Intuitive version sits inside the space; the Adaptive version sits outside with only its bulb inside, for spaces too small to hold the unit.
A compact Fluoroketone (FK) suppression module for servers, fuse boxes and other confined spaces, triggered by a thermal element when the temperature passes a preset limit. It adds a pressure monitoring port, so a pressure switch can report to a BMS, fire alarm system or siren strobe.
Watermist detection and suppression system for generator areas, with detection devices, special mist nozzles and a connection to a water tank or water cylinders. It discharges droplets below 70 microns within seconds of detecting a fire.
Watermist detection and suppression system for indoor areas, with detection devices, mist nozzles and a water tank connection, discharging droplets below 100 microns. It works automatically, and operations can resume quickly as there are no chemicals to clean up.
Watermist detection and suppression system installed around a transformer, with detection devices, mist nozzles and a water tank connection. It discharges droplets below 120 microns within seconds, putting out the fire and cooling the area.
Sizes: 2, 4, 6 kg
Pre-engineered clean agent system for electrical cabinets, server racks and wind turbine alternator zones, where the UL listed detection tube both senses the fire and delivers the agent at the source. Available in 2, 4 and 6 kg cylinders with FE-36 (HFC-236fa), FK-5-1-12 or FM-200 (HFC-227ea).
Sizes: 2, 4, 6 kg
Indirect clean agent system for CNC and EDM machines, dry type transformers, DG sets, fume hoods and wind turbines: the red detection tubing only senses the fire and large nozzles then flood the work zone with clean agent. Offered in 2, 4 and 6 kg cylinders.
Sizes: 2 kg, 4 kg
Self-actuating, pre-engineered clean agent system for enclosed panels and cabinets, developed and made by Gunnebo India. A pressurised heat sensing tube ruptures at the fire and releases Grenoz 1230 at the point where the fire starts.
Sizes: 10 kg
Automatic clean agent system for small unmanned rooms such as server, UPS, battery and record rooms. A ceiling mounted 10 kg Grenoz 1230 cylinder discharges when point detectors and a fire alarm panel trigger its electrical actuator.
An automatic suppression system for electrical panels, switchgear, control cabins and server racks that detects a fire and puts it out at the source. It uses a clean agent that leaves no residue and is safe on live panels.
Sizes: 80 and 140 L
A clean agent system that protects hazard areas with inert gas, using IG55, IG541, IG100 or IG01 stored in 80 and 140 litre cylinders. It carries VdS approval and is designed with VdS calculation software.
