Morley by Honeywell HM-MCP-G-I Addressable Break Glass Manual Call Point (EN)
The Morley-IAS addressable break glass call point for EN systems, with a rotary decade switch for addressing and a test key for full functional testing.

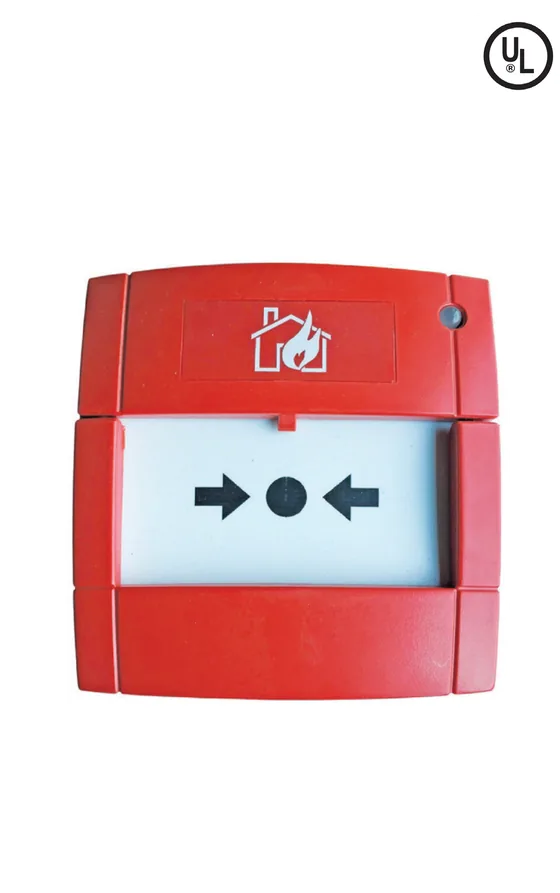

Dealer for Morley by HoneywellMorley by Honeywell HM-MCP-G-UL-I Addressable Break Glass Manual Call Point (Morley UL)
An addressable break glass call point for the Morley UL range, addressed with a rotary decade switch and tested with a specialist key that lowers the glass and releases the micro-switch.
- Rotary decade switch at the rear for addressing
- Test key lowers the glass and releases the micro-switch for a full functional test
- Semi-flush or surface mounting
- IP24, 0°C to 49°C, 10% to 93% relative humidity
- Polycarbonate, ABS and PVC construction, 130g
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HM-MCP-G-UL-I |
|---|---|
| Dimensions | Semi-flush mounting: 89x93x27.5 (WxHxD) Surface mounting: 89x93x59.5 (WxHxD) |
| Weight | 130g |
| Operating Temprature | 0°-49°C |
| Ingress Protection (IP) Rating | IP 24 |
| Relative Humidity Range | 10% to 93% non-condensing |
| Construction Material | Durable Polycarbonate/ABS/PVC |
| HM-MCP-G-UL-I | Addressable Break Glass Manual Call point |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
