Notifier NBG-12LX Addressable Dual-Action Pull Station
A dual-action pull station with a built-in addressable interface, for any Notifier intelligent panel except the FireWarden series and the NSP-25 panel.

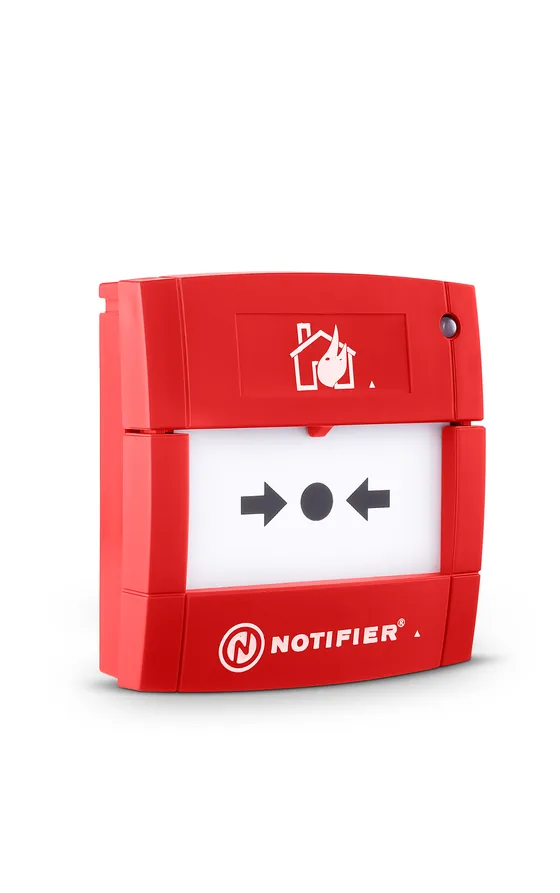

Dealer for NotifierNotifier NOT-MCP-G-I Addressable Manual Call Point
A non-coded addressable call point that gives a Notifier intelligent panel one addressable alarm point. It works with all Notifier intelligent panels and runs automatically in FlashScan mode.
- FlashScan mode, Notifier's patented high speed communication protocol
- Compatible with all Notifier intelligent panels
- 24 VDC operation, 385 µA average and 7.8 mA maximum current
- IP 24 rated, 0 to 49°C, 10% to 93% relative humidity non-condensing
- Polycarbonate, ABS and PVC construction
- UL Listed and FM Approved
Standards and approvals: UL Listed, FM Approved
Specifications
Specifications
| Specification | Details |
|---|---|
| Dimensions | 89(w) x 93(h) x 59.5(d) |
| Weight | 130g |
| Max Operating Current | 7.8 mA |
| Avg Operating Current | 385 µA |
| Operating Voltage | 24 VDC |
| Operating Temperature | 0°-49°C |
| Ingress Protection (IP) Rating | IP 24 |
| Relative Humidity Range | 10% to 93% non-condensing |
| Construction Material | Durable Polycarbonate/ABS/PVC |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
