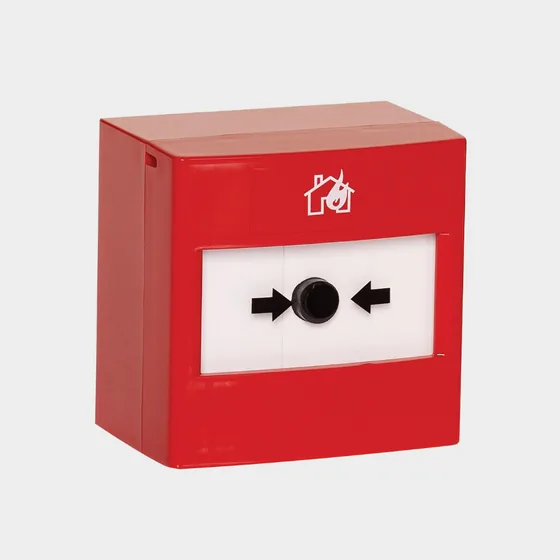

Authorised distributor for CeasefireSingle action push button call point for addressable loops, with a built-in short circuit isolator and a resettable operating element. Approved to EN 54-11 and EN 54-17 and certified by LPCB; TI-002431 is the new variant.
Standards and approvals: EN 54-11, EN 54-17, LPCB
| Specification | TI-002226 | TI-002431 |
|---|---|---|
| Type | Addressable | Addressable |
| Model | TI-002226 | TI-002431 |
| Operation/Activation By | Push Button | Push Button |
| Action for Operation | Single Action | Single Action |
| Operating Voltage | 15-40V DC | 15-40V DC |
| Standby Current Consumption | 35µA @ 24V DC | 35µA @ 24V DC |
| Ambient Temperature | -10°C to +55°C | -10°C to +55°C |
| Relative Humidity | 93% (non condensing) | 93% (non condensing) |
| Dimensions (Width x Height x Depth) | 88 x 87 x 61 mm (Surface Mount) | 88 x 87 x 61 mm (Surface Mount) |
| Standard | EN 54-11; EN 54-17 | EN 54-11; EN 54-17 |
| Certification/Approval Authority | LPCB | LPCB |
| LED Indicator | Bi-colour LED | Bi-colour LED |
| Short Circuit/Fault Isolator | Built-in short-circuit isolator | Built-in short-circuit isolator |
| Protection Class | IP42 | IP42 |
| Mode of Addressing | Electronically Addressed | Electronically Addressed |
| Product Warranty | 1 Year Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Conventional fire alarm panels in 2, 4, 8, 12, 16, 24 and 32 zone sizes, approved to EN 54-2 and 4. The 8 zone and larger panels can be networked, up to 8 control panels, and work with repeater or remote display units.
Addressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.
Addressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.
Conventional control panel for gas suppression, with 3 detection zones and 1 extinguishing zone that can drive solenoid or Metron actuators. A large LCD countdown timer shows the time to release.
Repeater panel that shows fire and fault status for 12 zones away from the main panel, with controls enabled by key switch or code entry. It has its own 1.25 A power supply with battery backup.
Remote display for conventional fire alarm systems with a 4 x 40 character backlit LCD and full system control. It runs from a 24 V DC supply and has fire and fault outputs.
A dual-action pull station with a built-in addressable interface, for any Notifier intelligent panel except the FireWarden series and the NSP-25 panel.
A non-coded addressable call point that gives a Notifier intelligent panel one addressable alarm point. It works with all Notifier intelligent panels and runs automatically in FlashScan mode.
An addressable break glass call point for the Morley UL range, addressed with a rotary decade switch and tested with a specialist key that lowers the glass and releases the micro-switch.
A red conventional indoor call point with a plug and play terminal block, available without a backbox (MCP2A/R470FF/01) or with a backbox (MCP2A/R470SF/01). It can be set up as break glass or resettable by changing the element.
A single-pole flexi-element call point for flush mounting, with a plug and play terminal block and a choice of break glass or resettable operation.
An addressable manual call point for raising the fire alarm by hand, with a resettable operating element and a built-in isolator. It works with XP95, Discovery and CoreProtocol.
