Notifier NOT-MCP-G-I Addressable Manual Call Point
A non-coded addressable call point that gives a Notifier intelligent panel one addressable alarm point. It works with all Notifier intelligent panels and runs automatically in FlashScan mode.

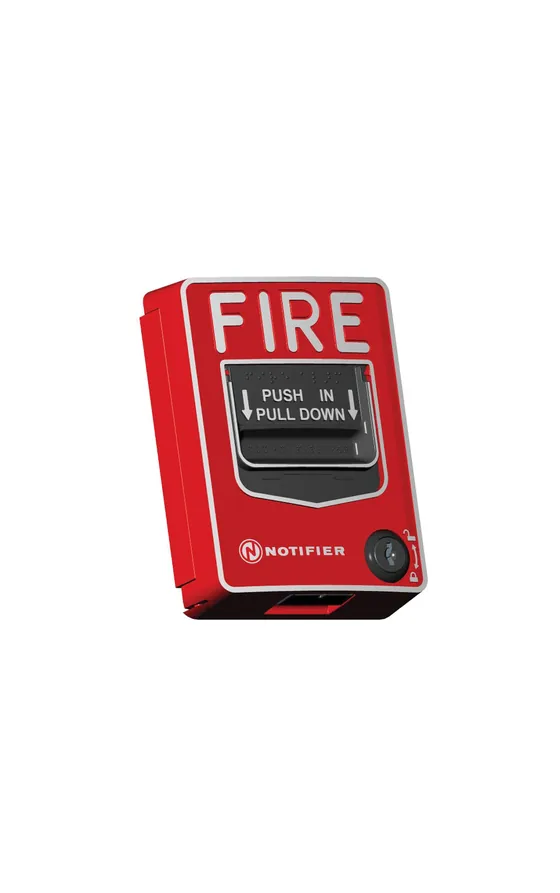

Dealer for NotifierNotifier NBG-12LX Addressable Dual-Action Pull Station
A dual-action pull station with a built-in addressable interface, for any Notifier intelligent panel except the FireWarden series and the NSP-25 panel.
- Addressable, with captive screw terminals ready for the SLC loop
- Smooth dual-action operation
- Surface mounting with an SB-10 or SB-I/O back box, or semiflush mounting
- 24 VDC normal operating voltage, 28.0 VDC maximum loop voltage
- Operating range 0°C to 49°C
- UL/ULC listed and FM approved, with CSFM, MEA, FDNY, U.S. Coast Guard and Lloyd's Register listings
Standards and approvals: UL/ULC Listed: S692 (listed for Canadian and non-Cana- dian applications), MEA: 67-02-E, CSFM: 7150-0028:0199, FDNY: COA #6085 (NFS2-640), COA #6098 (NFS2-3030), BSMI: CI313066760047, U.S. Coast Guard, Lloyd’s Register, FM Approved
Specifications
Specifications
| Specification | Details |
|---|---|
| Shipping Weight | 9.6 oz. (272.15 g) |
| Normal operating voltage | 24 VDC. |
| Maximum SLC loop voltage | 28.0 VDC. |
| Maximum SLC standby current | 375 µA. |
| Maximum SLC alarm current | 5 mA. |
| Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 10% to 93% (noncondensing) • For use indoors in a dry location |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
