Notifier NBG-12LX Addressable Dual-Action Pull Station
A dual-action pull station with a built-in addressable interface, for any Notifier intelligent panel except the FireWarden series and the NSP-25 panel.

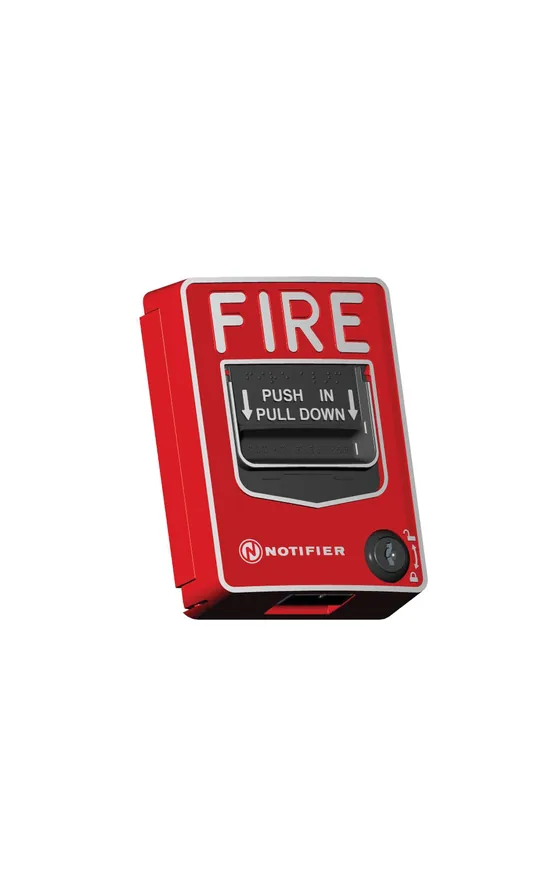

Dealer for NotifierNotifier NBG-12 Series Non-Coded Manual Pull Stations
A series of non-coded manual fire alarm pull stations in single-action and dual-action versions, with hex-key and key-lock models, designed with the installer and the end user in mind.
- Push in, pull down handle that latches once operated
- Meets UL 38 and the ADA 5 lb maximum pull force
- Gold-plated switch contacts rated 0.25 A at 30 VAC or VDC
- Four-position terminal strip moulded into the backplate
- Surface or semiflush mounting
- C(UL)US listed and CSFM approved; FM approved except the NBG-12LPS and NBG-12LPSP
Standards and approvals: C(UL)US Listed: file S692, CSFM approved: file 7150-0028:199, FM approved (except NBG-12LPS, NBG-12LPSP), MEA approved: file 67-02-E (NBG-12, NBG-12L, NBG-12LOB, NBG-12LA), Lloyd’s Register type approved: file 93/60141 (E3), U.S. Coast Guard approved: files 161.002/23/3 (AFP-200, Patented: U.S. Patent No. D428,351; 6,380,846; 6,314,772; 6,632,108
Specifications
Specifications
| Specification | Details |
|---|---|
| Switch contact ratings | gold-plated; rating 0.25 A @ 30 VAC or VDC. Auxiliary contact circuit (Terminals 3 & 4, |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
