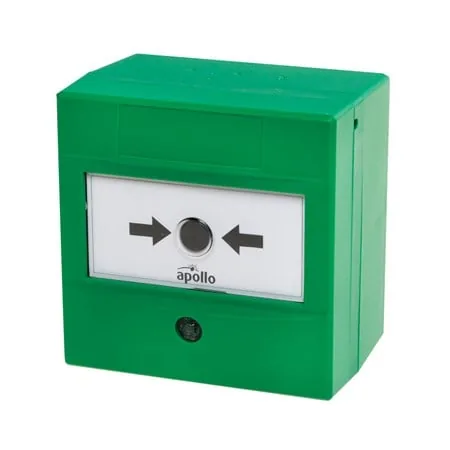

Authorised distributor for ApolloApollo Intelligent Manual Call Point, Green (Door Release)
A green addressable call point commonly used to release secure doors or barriers by hand in an emergency. It works with XP95, Discovery and CoreProtocol.
- Resettable operating element
- LED viewable over 170°
- Plug and play terminals and continuity link for wiring tests
- Semi flush or surface mounting
- 17 to 35 V dc supply, IP44, -40 to 70°C
- 10 year warranty
Specifications
Specifications
| Specification | SA5900-906APO |
|---|---|
| Warranty | 10 year |
| Colour | Green |
| Weight | 180g |
| Materials housing | Polycarbonate |
| Product length | 90mm | 3.54in |
| Product width | 90mm | 3.54in |
| Product depth | 63mm | 2.48in |
| Key type | Apollo, Manal, Call, Point reset key |
| Analogue value nominal | 16 |
| Alarm level analogue value | 64 |
| Fault level analogue value | 4 |
| Type | A |
| Operating element | Resettable element |
| Action | Single |
| Protocol voltage (max) | 13V |
| Protocol voltage (min) | 5V |
| Protocol voltage | 5 to 13V peak to peak |
| Power-up surge current | 1mA |
| Maximum power-up time | 1 second |
| Status indicator: Alarm | Red |
| Status indicator: Fault | Yellow |
| Status indicator: Isolate | Yellow |
| Status indicator: Poll | Flashing green |
| Quiescent current | 100μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 35V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 35V dc |
| Polarity | L1 &, L2 are polarity sensitive |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Operating temperature (min) | -40°C | -40°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature | -40 to 70°C | -40 to 158°F |
| IP rating Value | IP44 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
